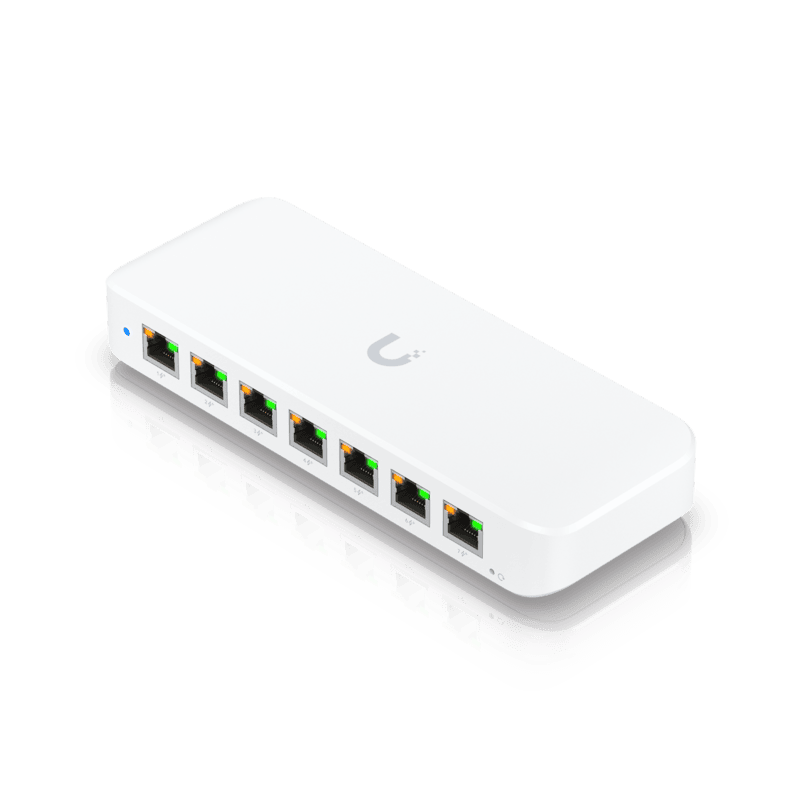

Ubiqiti USW-ULTRA-60W SWITCH
₹19,500.00
Out of stock
A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.
Product Details
Dimensions
203 x 76 x 33 mm (8 x 3 x 1.3")
Port Layout
1 GbE RJ45
8 (7 PoE+; 1 PoE++ input) (1G/100M/10M)
Max. PoE output
Up to PoE+
Total PoE Availability
PoE++ input: 42W PoE+ input: 16W 60W PoE adapter input: 42W 60W AC adapter input: 52W 210W AC adapter input: 202W
Form Factor
Compact desktop, wall, magnetion
Switching Capacity
16 Gbps
Total Non-Blocking Throughput
8 Gbps
Forwarding Rate
12 Mpps
Supported VLANs
256
MAC Address Table Size
4,000
STP & RSTP
✓
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
Loop Protection
✓
PoE Ports
PoE+
7
PoE++
1
Max. PoE Wattage per Port by PSE
PoE+
30W
Max. Power Consumption
9W (Excluding PoE Output) with PoE input 8W (Excluding PoE Output) with adapter input 210W (Including PoE Output) with 210W AC adapter input
Power Method
(1) AC/DC adapter (Included) (1) PoE++
Power Input Method
DC Input PoE
Power Supply
AC/DC, external, 60W
Supported Voltage Range
50—57V DC/PoE
Management
Ethernet
Heat Dissipation
15 BTU/hr (Excluding PoE Output)
Weight
Device: 320 g (11.3 oz) Wall mount: 45 g (1.6 oz) Adapter: 330 g (11.6 oz)
Enclosure Material
Polycarbonate
Ambient Operating Temperature
PoE++ input: -30 to 60° C (-22 to 140° F) 60W AC adapter input: -20 to 45° C (-4 to 113° F)
Ambient Operating Humidity
10 to 90% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel: 06367-24-08356
Application Requirements
UniFi Network
Version 8.0.7 and later
