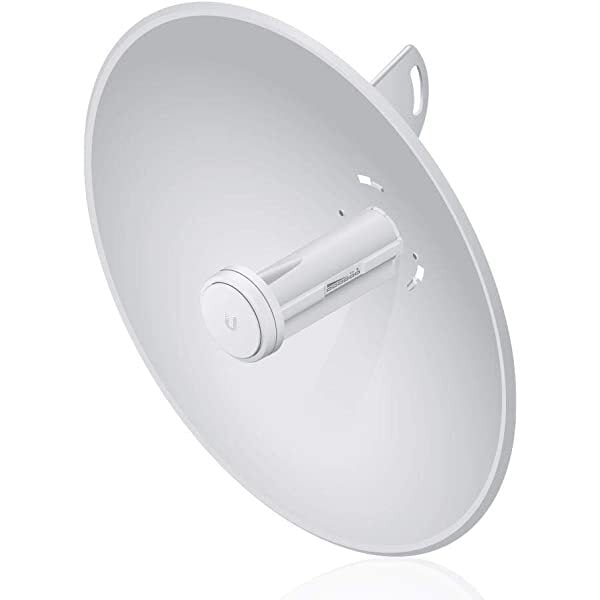

UBIQUITI POWERBEAM 5AC-500(Ubnt0027)
₹12,000.00
Out of stock
5 GHz, 25+ km link range
450+ Mbps throughput
Improved mounting
Dedicated spectral analysis radio
Dedicated WiFi management radio
Product Details
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | Without radome: 520 x 520 x 308 mm (20.5 x 20.5 x 12.1") With radome: 525 x 525 x 315 mm (20.7 x 20.7 x 12.4" |
| Weight | Without radome: 2.35 kg (5.18 lb) With radome: 3.2 kg (7 lb) |
| Enclosure material | UV-stabilized plastic |
| Mounting | Pole mount kit (Included) |
| Wind loading | 264.6 N at 96 km/h (60 lbf at 60 mph) |
| Wind survivability | 96 km/h (60 mph) |
| Hardware | |
| Networking interface | (1) 10/100/1000 MbE port |
| Power method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Power supply | 24V, 0.5A Gigabit PoE |
| Max. power consumption | 8.5W |
| Supported voltage range | 20-26V DC |
| ESD/EMP protection | Air/contact: ± 24 kV |
| LEDs | (1) Power, (1) LAN, (4) WLAN |
| Signal strength LEDs | Software-adjustable to correspond to custom RSSI levels |
| RoHS compliance | Yes |
| Salt fog test | IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5 |
| Vibration test | IEC 68-2-6 |
| Temperature shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40° C (104° F) Equivalent: ETS 300 019-1-4 |
| Wind-driven rain test | ETS 300 019-1-4 Equivalent: MIL-STD-810 G method 506.5 |
| Operating temperature | -40 to 70° C (-40 to 158° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| System | |
| Gain | 27 dBi |
| Max. VSWR | 1.5:1 |
| Channel sizes PtP Mode PtMP Mode | 10/20/30/40/50/60/80 MHz 10/20/30/40 MHz |
| Polarization | Dual linear |
| Operating Frequency (MHz) | |
| Worldwide | 5150 - 5875 MHz |
| USA U-NII-1 U-NII-2A U-NII-2C U-NII-3 | 5150 – 5250 MHz 5250 – 5350 MHz 5470 – 5725 MHz 5725 – 5850 MHz |
