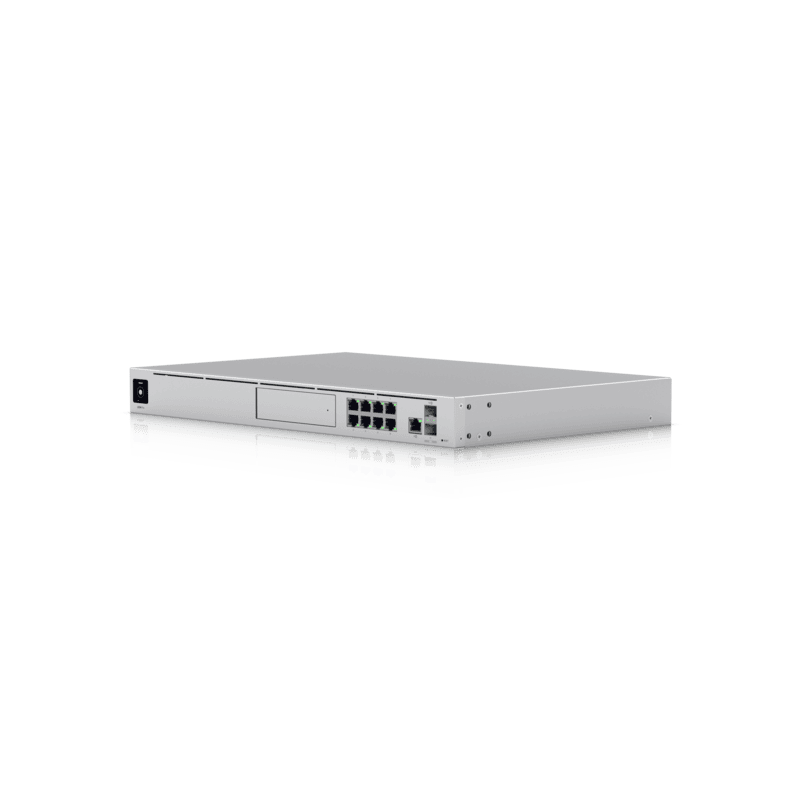

Ubiquity UBQ 10G SFP+WAN 8PORT GBPS (UDM-PRO)
₹43,500.00
Out of stock
10G Cloud Gateway with 100+ UniFi device / 1,000+ client support and 3.5 Gbps IPS routing.
Product Details
Dimensions
442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
UniFi Application Suite
Network
✓
Protect
✓
Access
✓
Talk
✓
Connect
✓
Managed UniFi Devices
100+
Managed Cameras
(24) HD (14) 2K (8) 4K
Managed Access Hubs
150
Simultaneous Users Connected
1,000+
Max. WAN Port Count
8
Default WAN Ports
(1) 10G SFP+ (1) GbE RJ45
Port Layout
1 GbE RJ45
9 (1G/100M/10M)
10G SFP+
2 (10G/1G)
IDS/IPS Throughput
3.5 Gbps
Form Factor
Rack mount (1U)
Redundancy
Shadow Mode (VRRP) Gateway Failover DC Power Backup
Stateful Firewall
✓
Application-Aware Layer 7 Firewall
✓
DPI & Traffic Identification
✓
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
✓
Content Filtering
✓
Intrusion Prevention (IPS/IDS)
✓
Ad Blocking
✓
IDS/IPS Signatures
55,000+ with CyberSecure
VLAN/Subnet-based Traffic Segmentation
✓
License-Free SD-WAN
✓
Site-to-Site VPN
Site Magic
✓
IPsec
✓
OpenVPN
✓
VPN Server
Identity Endpoint One-Click VPN
✓
Teleport Zero-Configuration VPN
✓
WireGuard
✓
OpenVPN
✓
L2TP
✓
VPN Client
OpenVPN
✓
WireGuard
✓
Multi-WAN Load Balancing
✓
Shadow Mode (VRRP) High Availabile
✓
LACP Port Aggregation
✓
Dynamic Routing
OSPF
✓
BGP
✓
Advanced QoS
✓
Multicast DNS (mDNS)
✓
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
✓
Integrated RADIUS Server
✓
RADIUS over TLS (RadSec)
✓
Additional Internet Failover with UniFi LTE Backup
✓
Internet Quality and Outage Reporting
✓
MAC Address Table Size
4,000
Policy-based WAN and VPN Routing
✓
Customizable DHCP Server
✓
IPv6 ISP Support
✓
IGMP Proxy
✓
Virtual Network Override
✓
NVR Storage
(1) 3.5" NVR HDD bay
Max. Power Consumption
33W
Power Method
(1) Universal AC input, 100—240V AC, 50/60 Hz (1) USP-RPS DC input
Power Supply
AC/DC, internal, 50W
Supported Voltage Range
100—240V AC
Heat Dissipation
112 BTU/hr
Processor
Quad-core ARM® Cortex®-A57 at 1.7 GHz
System Memory
4 GB
On-board Storage
16 GB
Weight
3.9 kg (8.6 lb)
Enclosure Material
Aluminium CNC, SGCC steel
Mount Material
SGCC steel
LCM Display
1.3" touchscreen
Management
Ethernet Bluetooth
LEDs
Ethernet
✓
SFP+
✓
RPS
✓
PSU
✓
HDD
✓
Button
(1) Factory-reset
ESD/EMP Protection
Air: ± 15kV, contact: ± 8kV
Ambient Operating Temperature
-10 to 40° C (14 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel: 01136-20-08356, SRRC
