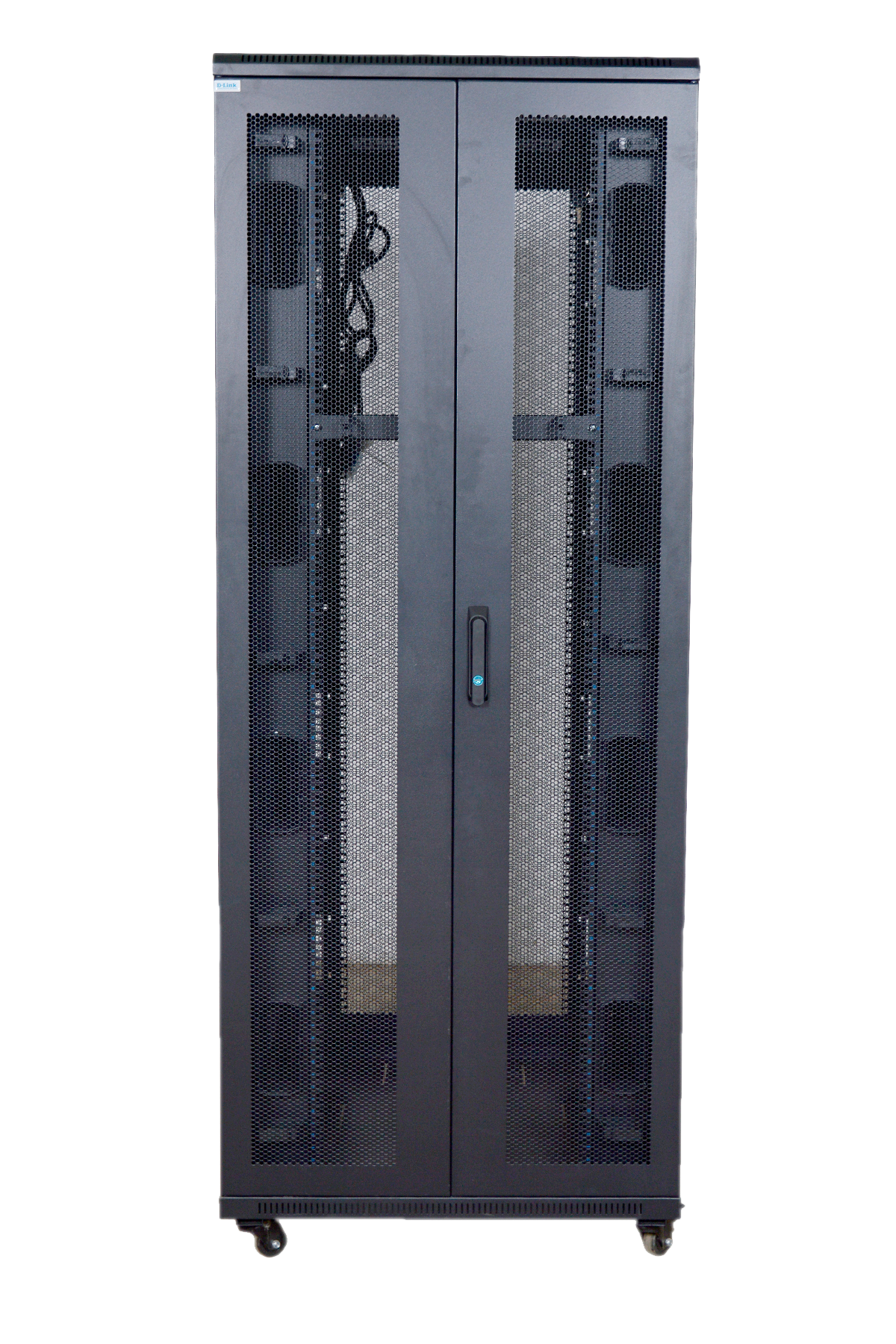

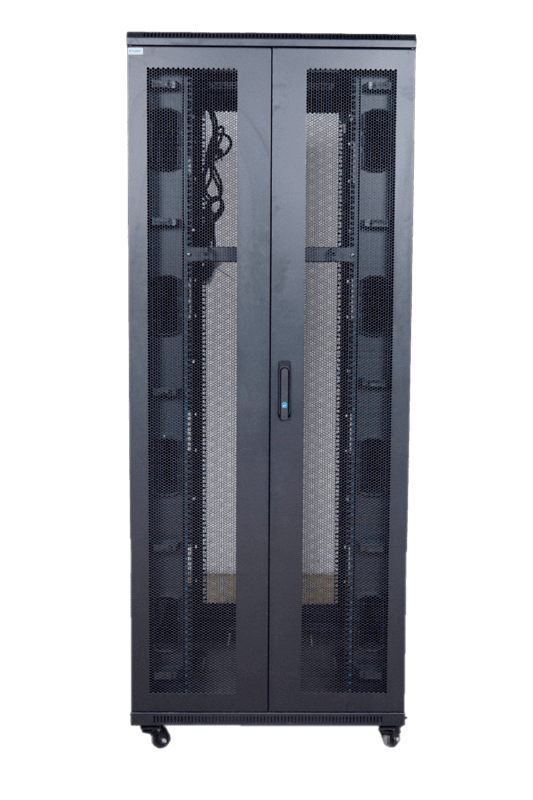

D-Link-NFR-42U-8010-BL-SK
D-Link Floor Standing Steel Enclosure is designed for Servers, Networking, Data Centers, Audio Video, Telecom and Lab applications. Enclosures are fabricated out of CRCA steel, CNC programmed, punched, bended, welded and Powder coated with highest quality standards.
Configuration for standard Racks is welded frame with 4 pillars of Multi Fold profile welded to top and bottom panels. 2 Pair Depth rails to additionally support the Enclosure. Removable side panels partially vented for better air circulation. Openings/Cut outs for field cable entry from Top & Bottom of the Rack. Vented top cover with fan mounting provision, Front Glass or perforated Metal door with lock and key. Back Vented, perforated or perforated Dual metal door with lock and key. Free Floor standing Design with 4 No. castor wheels 2 no's with breaks and 2 no's without breaks. Levelers or Plinth can be provided on request.
Racks are available in 17U to 42U Variants with 650mm/800mm/1000mm deep configuration and 600 and 800 width configurations.
Features
- Top and Bottom panel with ventilation and cable entry facility.
- Provision to mount the cooling fans on the top panels.
- Powder coated finish with pretreatment process meeting all industry standards.
- Grounding and Bonding Options.
- 100% assured compatibility with all equipment conforming to DIN 41494.
- General industrial standard for equipment.
- UL Certified
- Top and Bottom panel with ventilation and cable entry facility.
- Provision to mount the cooling fans on the top panels.
- Powder coated finish with pretreatment process meeting all industry standards.
- Grounding and Bonding Options.
- 100% assured compatibility with all equipment conforming to DIN 41494.
- General industrial standard for equipment.
- UL Certified
Specifications
- Rack Standard : Conforms to DIN 41494 or equivalent standard
- Construction : Welded or CKD (knockdown)
- Front Door : Lockable Toughened Glass Door
- Rear Door : Vented Steel Dual Door
- Basic Frame : Steel
- Equipment Mounting : DIN Standard 10mm Sq. Slots / Direct M6 Tap
- Mounting Angle : 19” Mounting angles made of formed steel
- Standard Finish : Powder Coated
- Top and Bottom Cover : Welded to Frame, Vented and Field Cable entry exit cut outs.
- Standard Mounting Option : Castor wheels (Front 2 wheels with Break and rear without break) Or Levelers or Base plinth
- Standard Color : Grey or Black
- Static Load : 500KGs
