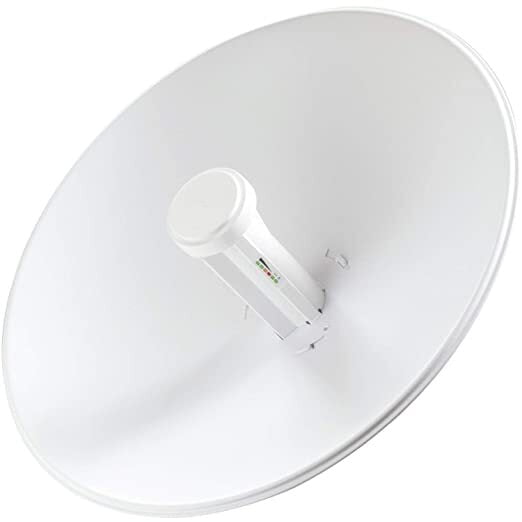

UBIQUITI POWERBEAM PBE-M5-400(UBNT0019)
₹9,791.00
5 GHz, 25 dBi bridge with 150+ Mbps throughput.
5 GHz, 25+ km link range
150+ Mbps throughput
Improved mounting
Product Details
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 420 x 420 x 275 mm (16.54 x 16.54 x 10.83") |
| Weight | 1.75 kg (4.8 lb) |
| Enclosure material | UV-stabilized plastic |
| Mounting | Pole mount kit (Included) |
| Wind survivability | 200 km/h (125 mph) |
| Wind loading | 342.5 N @ 200 km/h (77 lbf @ 125 mph) |
| Hardware | |
| Networking interface | (1) 10/100/1000 MbE port |
| Power method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Power supply | 24V, 0.5A Gigabit PoE adapter (Included) |
| Max. power consumption | 8W |
| Max. TX power | 26 dBm |
| Gain | 25 dBi |
| ESD/EMP protection | Air/contact: ± 24 kV |
| LEDs | (1) Power, (1) LAN, (4) WLAN |
| Signal Strength LEDs | Software-adjustable to correspond to custom RSSI levels |
| RoHS compliance | Yes |
| Salt fog test | IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5 |
| Vibration test | IEC 68-2-6 |
| Temperature shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40° C (104° F) Equivalent: ETS 300 019-1-4 |
| Wind-driven rain test | ETS 300 019-1-4 Equivalent: MIL-STD-810 G method 506.5 |
| Operating temperature | -40 to 70° C (-40 to 158° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| System | |
| Gain | 22 dBi |
| Channel sizes | 5/8/10/20/30/40 MHz |
| Polarization | Dual linear |
| Operating Frequency (MHz) | |
| Worldwide | 5170 - 5875 MHz |
| US/CA | 5725 - 5850 MHz |
