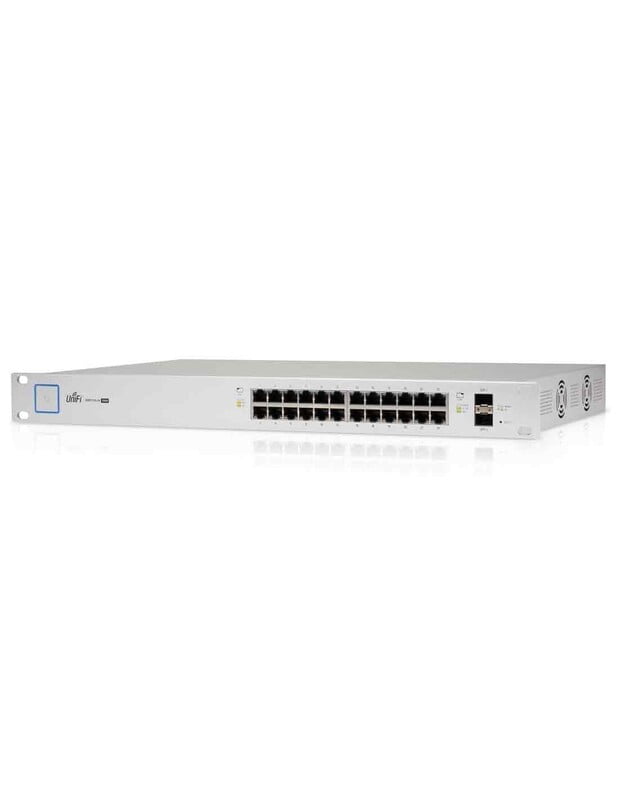

UBIQUITI (US-24-500W-EU) UNIFI SWITCH(Ubnt0036)
Non-returnable
₹47,946.00
Out of stock
Layer 2, PoE switch with (24) GbE, PoE+ and 24V passive PoE RJ45 ports and (2) 1G SFP ports.
(24) GbE PoE+ ports
(2) 1G SFP ports
500W total PoE availability
Product Details
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 485 x 43.7 x 285.4 mm (19.09 x 1.72 x 11.24") |
| Weight | 4.8 kg (10.6 lb) |
| Hardware | |
| Networking Interface | (24) GbE RJ45 Ports (2) 1G SFP Ethernet Ports |
| Management Interface | (1) RJ45 Serial Port Out-of-Band, Ethernet In-Band |
| Total Non-Blocking Throughput | 26 Gbps |
| Switching Capacity | 52 Gbps |
| Forwarding Rate | 38.69 Mpps |
| MAC Address Table | 16384 |
| Maximum Aggregations | 6 |
| Monitoring Sessions | 1 |
| Maximum VLANs | 255 |
| Power Method | 100-240V AC/50-60 Hz, Universal Input |
| Power Supply | AC/DC, Internal, 500V DC |
| Max. Power Consumption Including PoE Output Excluding PoE Output | 500W 30W |
| LEDs Per Port RJ45 Data Ports SFP Data Ports | PoE, Speed/Link/Activity Speed/Link/Activity |
| Sound Level* Fan Level 0 Fan Level 1 Fan Level 2 Fan Level 3 | 9.3 dBr 15.2 dBr 17.9 dBr 21.6 dBr * Background noise level: 27.5 dBa |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| PoE+ Per Port | |
| PoE Interfaces | PoE+ (Pins 1, 2+; 3, 6-) 24V DC Passive PoE (Pins 4, 5+; 7, 8-) |
| Max. PoE+ Wattage per Port by PSE | 34.2W |
| Voltage Range PoE+ Mode | 50–57V |
| Max. Passive PoE Wattage per Port | 17W |
| 24V Passive PoE Voltage Range | 20-27V |
