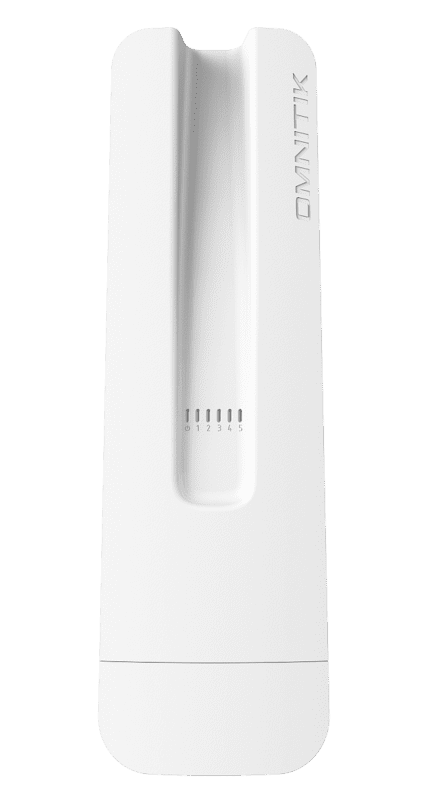

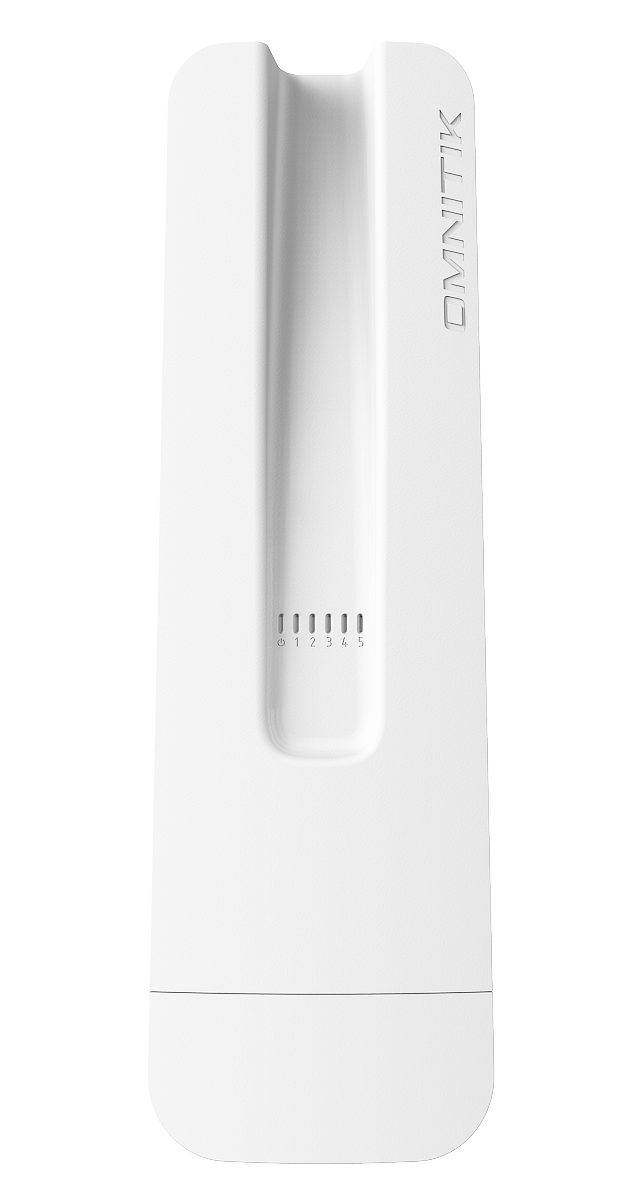

Mikrotik RB Omnitik G -5hacD (EU) 5 AC(MKT0061a)
We are glad to introduce a significant upgrade to our popular OmniTIK 5GHz access points!
OmniTIK 5 ac features five Gigabit Ethernet ports and support for 802.11ac. It’s equipped with a powerful 720MHz CPU, 128MB RAM, high power 802.11a/n/ac Dual Chain wireless (support for AC as well as backwards compatible with regular 802.11a/n CPE) and comes with a new design weatherproof outdoor enclosure, two integrated 7.5dBi 5GHz omni antennas, a power supply, a PoE injector and a mounting kit.
- OmniTIK 5 ac US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
- OmniTIK 5 ac (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Quick Guide for this product can be found here
Specifications
| Details | |
|---|---|
| Product code | RBOmniTikG-5HacD |
| Architecture | MIPSBE |
| CPU | QCA9557 |
| CPU core count | 1 |
| CPU nominal frequency | 720 MHz |
| Switch chip model | QCA8337 |
| Dimensions | 416 x 129 x 58 mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
Powering
| Details | |
|---|---|
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 14 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 12-57 V |
Wireless specifications
| Details | |
|---|---|
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 7.5 |
| Wireless 5 GHz chip model | QCA9892 |
| Wireless 5 GHz generation | Wi-Fi 5 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 5 |
Peripherals
| Details | |
|---|---|
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Other
| Details | |
|---|---|
| Beeper | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP54 |
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 31 | -96 |
| 54MBit/s | 27 | -81 |
| MCS0 | 30 | -96 |
| MCS7 | 27 | -77 |
| MCS9 | 22 | -72 |
Router
- Wireless StandardWi-Fi 5
- Frequency Band5 GHz
- Speed 5 GHzMbps
- Antenna Gain Wireless 5GHz7.5dBi
- Size of RAM128 MB
Switch
- 10/100/1000 Ethernet ports5
- POE InPassive POE
