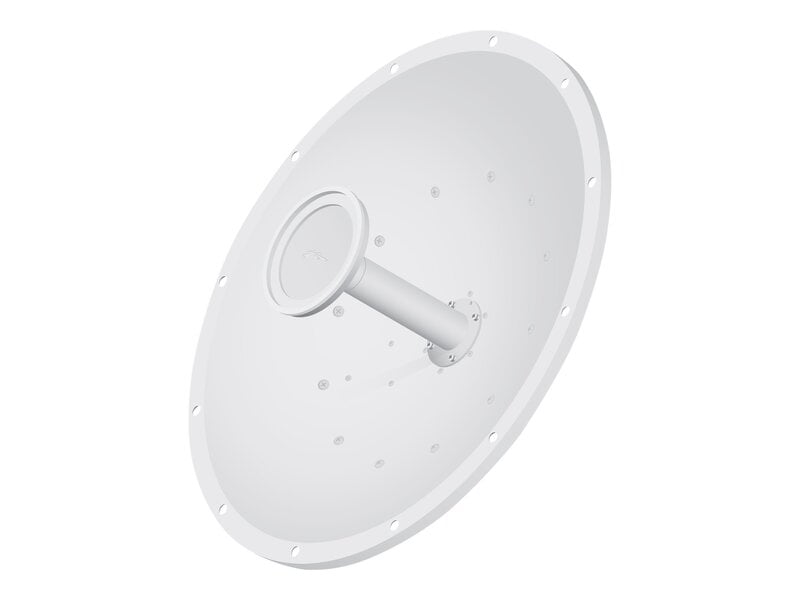

UBIQUITI ROCKET DISH 5GHZ 30DBI(UBNT0021)
Non-returnable
₹11,646.00
Out of stock
2x2 dual-polarity performance
Robust mechanical design for outdoor application use
Included radome and metal shroud
Compatible with Rocket Prism 5AC, Rocket M5
Product Details
Technical Specifications
| RD-5G34 | |
|---|---|
| Dimensions | 1050 x 1050 x 421 mm (41.34 x 41.34 x 16.57") |
| Weight | 13.5 kg (29.76 lb) |
| Frequency Range | 4.9 - 5.8 GHz |
| Gain | 4.9 GHz: 30 dBi 5 - 5.8 GHz: 34 dBi |
| HPOL Beamwidth | 3° (3 dB) |
| VPOL Beamwidth | 3° (3 dB) |
| F/B Ratio | 42 dB |
| Max. VSWR | 1.4:1 |
| Wind Loading | 1,779 N @ 200 km/h (400 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 35 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included |
| RD-5G30 | |
| Dimensions | 650 x 650 x 304 mm (25.6 x 25.6 x 11.97") |
| Weight | 9.8 kg (21.61 lb) |
| Frequency Range | 4.9 - 5.8 GHz |
| Gain | 4.9 GHz: 26 dBi 5 - 5.9 GHz: 30 dBi |
| HPOL Beamwidth | 5° (3 dB) |
| VPOL Beamwidth | 5° (3 dB) |
| F/B Ratio | 34 dB |
| Max. VSWR | 1.4:1 |
| Wind Loading | 787 N @ 200 km/h (177 lbf @125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 35 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included |
