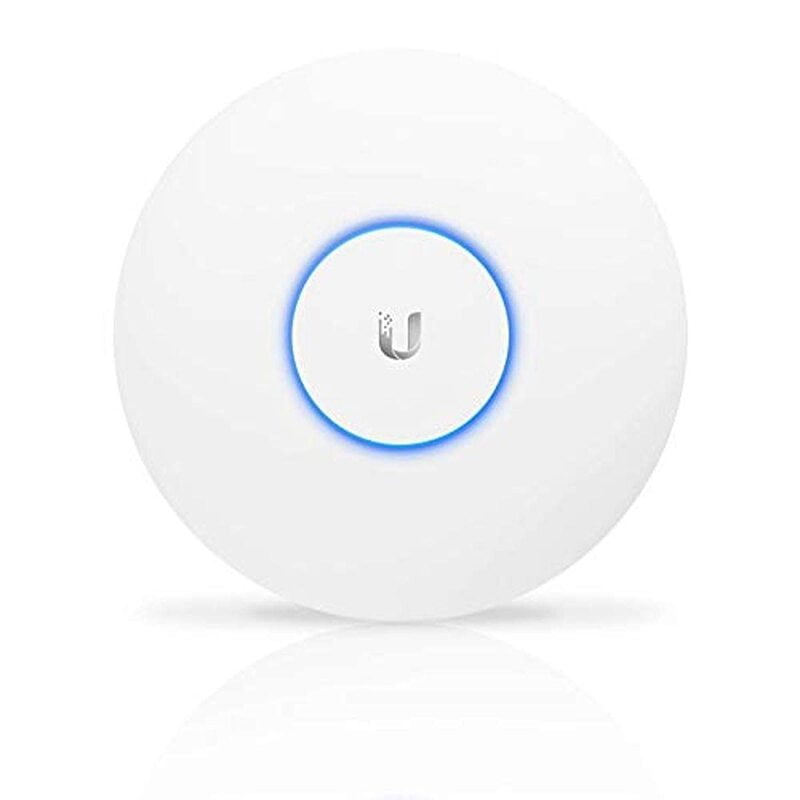

Ubiquiti UAP-AC- PRO(Ubnt0032)
₹13,950.00
Dual-band WiFi 5 access point designed to support high-density networks and critical system applications.
1,500 ft² coverage
250+ connected devices
WiFi5 (3x3 MIMO)
Powered using PoE*
Product Details
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | Ø196.7 x 35 mm (Ø7.7 x 1.4") |
| Weight | Without mount: 350 g (12.4 oz), With mount: 450 g (15.9 oz) |
| Hardware | |
| Networking interface | (2) GbE RJ45 ports |
| Management interface | Ethernet Bluetooth |
| Power method | PoE 48V Passive PoE |
| Power supply | UniFi PoE switch 48V, 0.5A PoE adapter (Included)* *5-packs do not come with PoE adapters. |
| Supported voltage range | 44—57V DC |
| Max. power consumption | 9W |
| Max. TX power 2.4 GHz 5 GHz | 22 dBm 22 dBm |
| MIMO 2.4 GHz 5 GHz | 3 x 3 3 x 3 |
| Throughput rate 2.4 GHz 5 GHz | 450 Mbps 1300 Mbps |
| Antenna gain 2 GHz 5 GHz | 3 dBi 3 dBi |
| Button | Factory reset |
| Mounting | Wall/ceiling (Included) |
| Operating temperature | -10 to 70° C (14 to 158° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11 a/b/g/n/ac |
| Wireless security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| BSSID | 4 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Power save | Supported |
| WMM | Voice, video, best effort, and background |
| Concurrent clients | 250+ |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
| 802.11ac | 6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80) |
