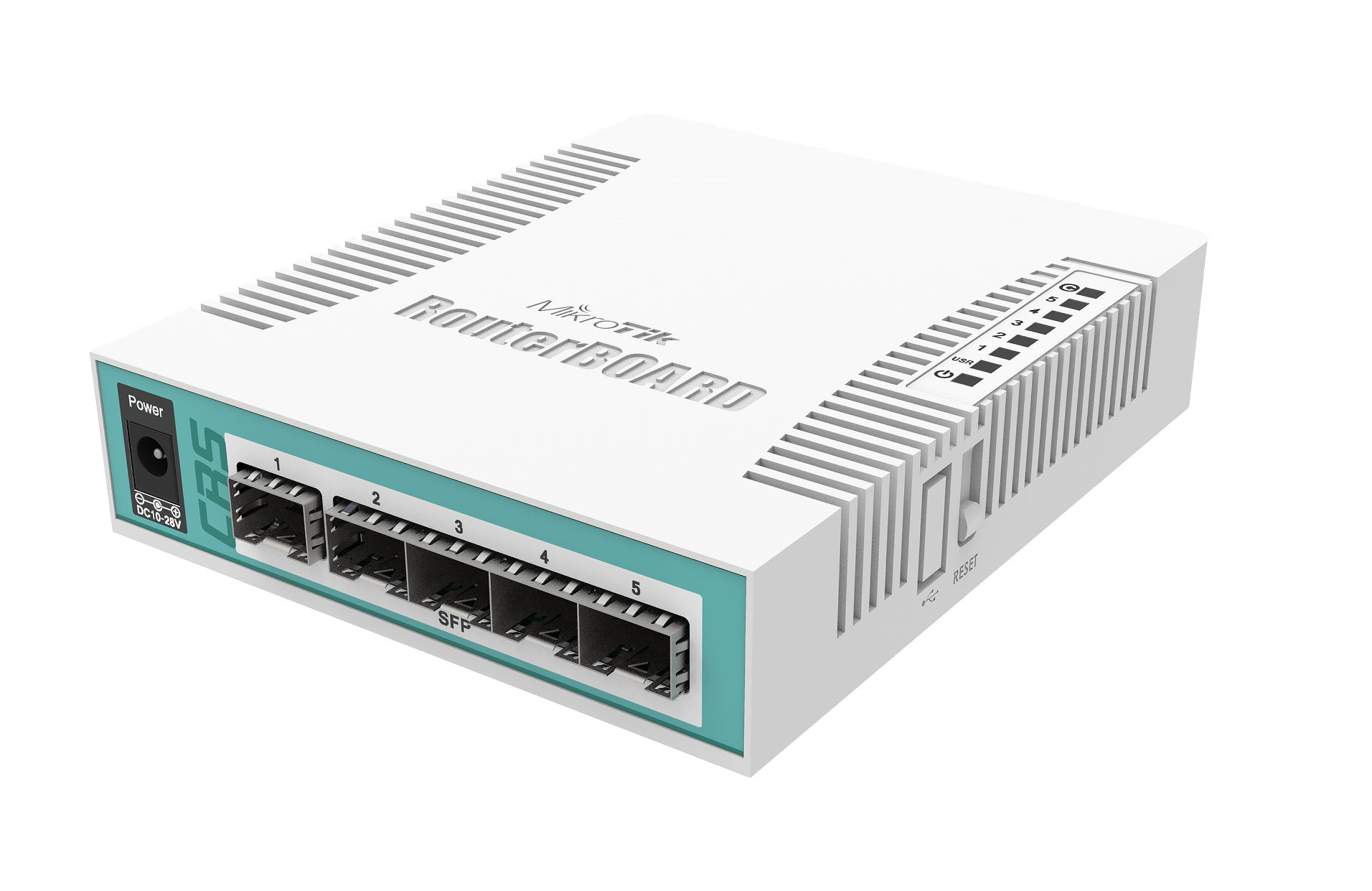

Mikrotik RB CRS106-1C-5S
₹4,400.00 ₹4,850.00

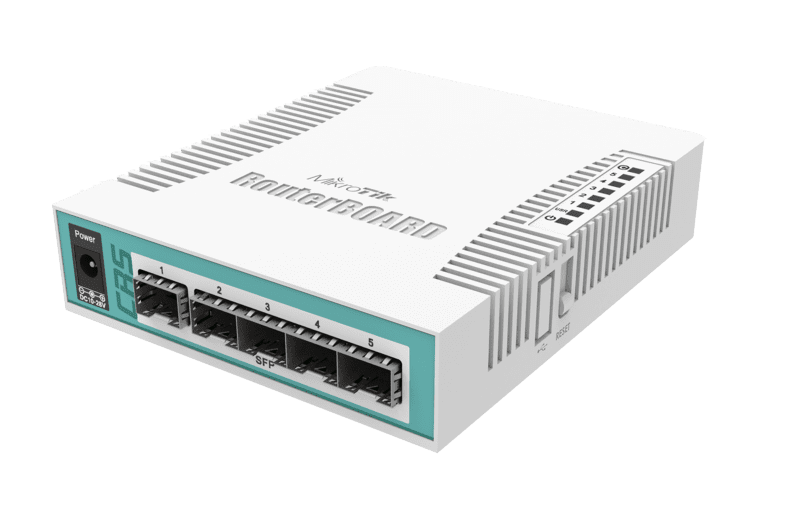

The Cloud Router Switch 106-1C-5S is a desktop size smart switch, equipped with one Gigabit Ethernet / SFP combo port and five 1.25Gbps SFP cages. The package includes a power supply. Powered by a 400MHz CPU and 128MB RAM, it runs RouterOS with a L5 license and supports 11- 30V power.
At $59 this product provides a market-leading solution for connecting up to six SFP devices.
Product Details
Specifications
Specifications
| Details | |
|---|---|
| Product code | CRS106-1C-5S |
| Architecture | MIPSBE |
| CPU | QCA8511 |
| CPU core count | 1 |
| CPU nominal frequency | 400 MHz |
| Switch chip model | QCA8511 |
| Dimensions | 114 x 137 x 29mm |
| RouterOS license | 5 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -20°C to 70°C |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (PoE-IN, DC jack) |
| DC jack input Voltage | 11-30 V |
| Max power consumption | 11 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 11-30 V |
Ethernet
| Details | |
|---|---|
| Ethernet Combo ports | 1 |
Fiber
| Details | |
|---|---|
| SFP ports | 5 |
Peripherals
| Details | |
|---|---|
| Serial console port | RJ45 |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | IP20 |
Router
- Size of RAM128 MB
Switch
- Ethernet Combo ports1
- 1G / SFP Ports1
- POE InPassive POE
