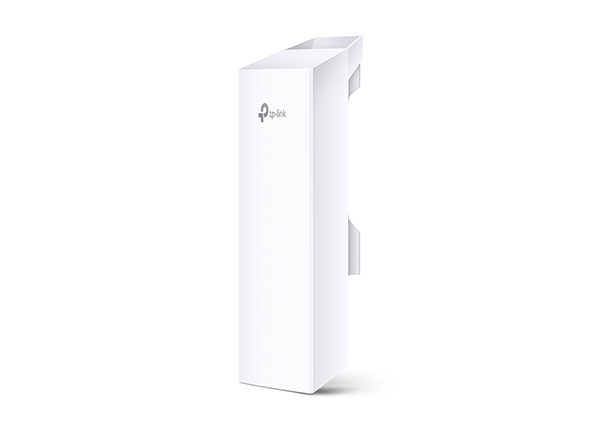

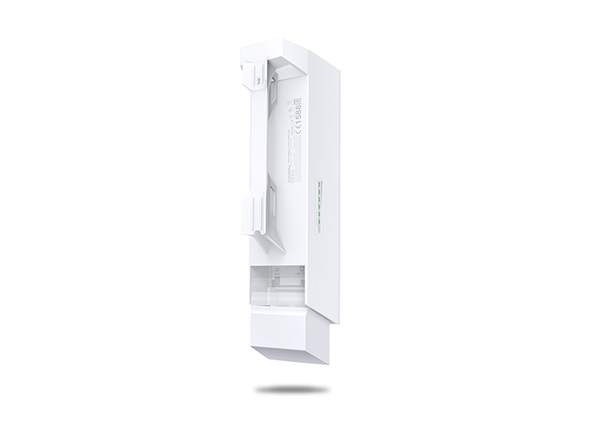

Tplink Cpe-210 2.4Giga 300Mpbs

₹2,635.00

Antenna integrata direttiva da 9dBi MIMO a doppia polarizzazione
Potenza di trasmissione regolabile da 0 a 11dBm
La tecnologia Pharos MAXtream TDMA (Time-Division Multiple-Access-) di TP-LINK migliora la velocità, ottimizza capacità e latenza, ideale per applicazioni PTMP
Sistema di gestione centralizzato - Pharos Control
Modalità operative AP / Client / AP Router / AP Client Router (WISP)
Injector PoE Passivo (incluso nella confezione) con capacità fino a 60m e funzionalità di RESET remoto

Quantity

Add to Cart

Product Details


Processore	Qualcomm Atheros 560MHz CPU, MIPS 74Kc
Memoria	64MB DDR2 RAM, 8MB Flash
Interfaccia	1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in) 1 Grounding Terminal 1 Reset Button
Alimentazione	Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) Voltage range: 16-27VDC
Consumo energetico	10.5 Watts Max Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
Dimensioni ( L x P x A )	224 x 79 x 60 mm
Tipo di antenna	Built-in 9dBi 2x2 Dual-polarized Directional Antenna Beam Width: 65° (H-Plane) / 40° (E-Plane) Note: For more details, please refer to datasheet
Sicurezza	15KV ESD Protection 6KV Lightning Protection
Enclosure	Outdoor ASA stabilized plastic material IPX5 waterproof Certification


Standard wireless	IEEE 802.11b/g/n (with Pharos MAXtream disabled)
Protocollo proprietario	TDMA Mode (with Pharos MAXtream enabled)
Velocità wireless	Up to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic)
Frequenza	2.4~2.483GHz Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.
Potenza di trasmissione	<20dBm EIRP (normativa CE)


Configurazioni wireless	Pharos MAXtream TDMA Technology 802.11b/g/n Modes Selectable Channel Width: 5/10/20/40MHz Automatic Channel Selection Transmission Power Control Dynamic Frequency Selection (DFS) WDS Enable/Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption SSID Broadcast Enable/Disable Multi-SSID with VLAN Tagging (AP mode only) Distance/ACK Timeout Setting Wireless MAC Address Filter Wireless Advanced: > Beacon Interval/RTS Threshold/Fragmentation >Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Gestione	Discovery and Remote Management via Pharos Control application HTTP/HTTPS Web-based management System Log SNMP Agent(v2c) Ping Watch Dog Dynamic DDNS SSH Server
Tool di sistema	Wireless Signal Quality Indicators: Signal Strength/Noise/Transmit CCQ/CPU/Memory Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP Spectrum Analyzer Speed Test Ping Traceroute
Ottimizzazioni di sistema	Optimized IGMP Snooping/Proxy for multicast applications Hardware watch dog


Dimensioni ( L x P x A )	1105733.5mm
Interfacce	1 AC Jack with Earth Ground 1 10/100/1000Mbps Shielded Ethernet Port (Power + Data) 1 10/100/1000Mbps Shielded Ethernet Port (Data)
Tasto	Remote Reset Button
Indicatori di carica LED	Green
Input	100-240VAC, 50/60Hz
Output	24VDC, 1.0A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Efficienza	>80%
Certificazioni	CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark


Certificazione	CE, FCC, RoHS, IPX5
Contenuto della confezione	Outdoor Wireless CPE 24V 1A Passive PoE Adapter Pole Mounting Straps AC Power Cord Installation Guide
Requisiti di sistema	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
Ambiente	Operating Temperature: -40°C~70°C (-40℉~158℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing
