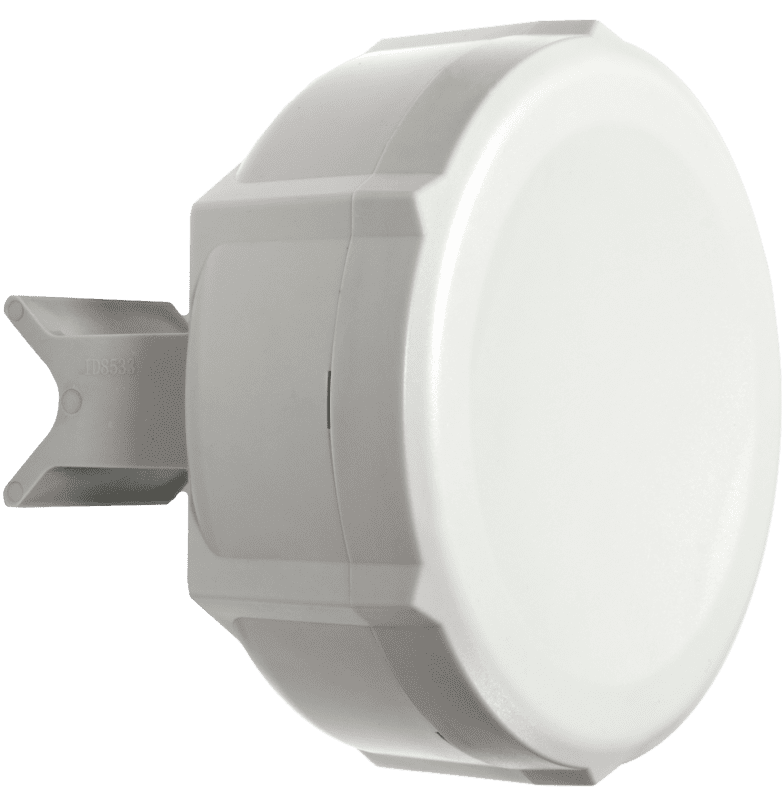

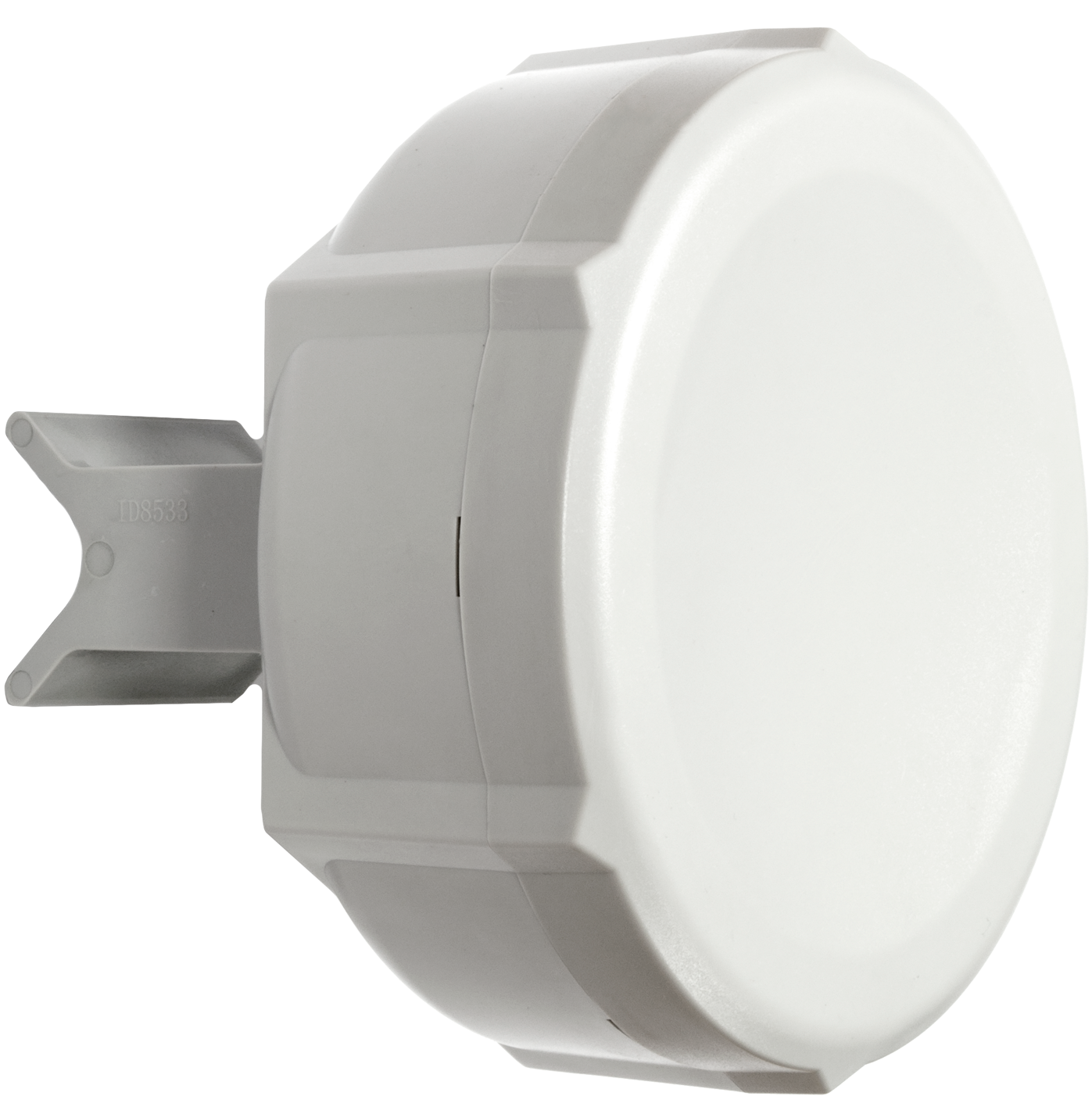

RB SXTG-5HPACD ( SXT 5 AC )
₹9,500.00
The SXT ac is a new member in our 802.11ac product lineup, currently two models are available — with regular 28 degree antenna, and the SA model with a 90 wide beam- width sector antenna. Also supports 802.11a/n mode and is compatible with all legacy RouterBOARD devices, including Nstream and Nv2 protocols. Both devices come with Gigabit Ethernet.
New products are backwards compatible- for example, you can replace your 5GHz 802.11an legacy Access Point with new 802.11ac product and your existing customers will still be able to connect to it. Product Details
Specifications
| Details | |
|---|---|
| Product code | RBSXTG-5HPacD |
| Architecture | MIPSBE |
| CPU | QCA9557 |
| CPU core count | 1 |
| CPU nominal frequency | 720 MHz |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
Powering
| Details | |
|---|---|
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 12 W |
| Cooling type | Passive |
| PoE in | 802.3af/at |
| PoE in input Voltage | 15-60 V |
Wireless specifications
| Details | |
|---|---|
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 16 |
| Wireless 5 GHz chip model | QCA9892 |
| Wireless 5 GHz generation | Wi-Fi 5 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Peripherals
| Details | |
|---|---|
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | FCC |
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 31 | -96 |
| 54MBit/s | 28 | -81 |
| MCS0 | 30 | -96 |
| MCS7 | 27 | -77 |
| MCS9 | 22 | -72 |
