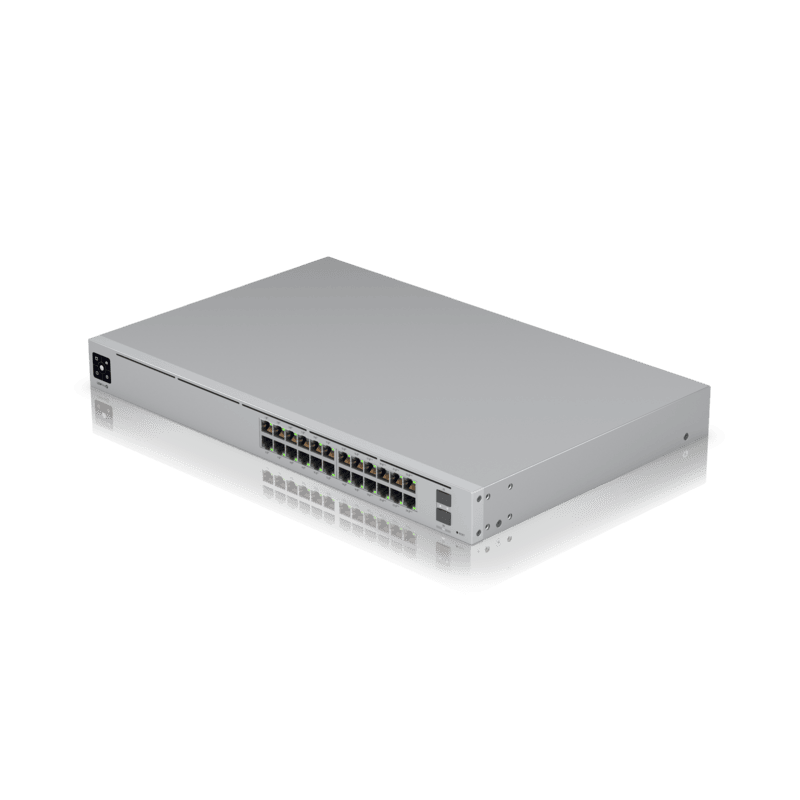

Ubiquiti USW-PRO-24-POE
₹71,500.00
Out of stock
A 24-port, Layer 3 switch capable of high-power PoE++ output.
Product Details
Dimensions
442 x 285 x 44 mm (17.4 x 11.2 x 1.7")
Port Layout
1 GbE RJ45
24 (16 PoE+; 8 PoE++) (1G/100M/10M)
10G SFP+
2 (10G/1G)
Max. PoE Output
Up to PoE++
Total PoE Availability
400W
Redundancy
DC Power Backup
Layer 3
✓
Form Factor
Rack mount (1U)
Switching Capacity
88 Gbps
Total Non-Blocking Throughput
44 Gbps
Forwarding Rate
65 Mpps
Supported VLANs
1,000
MAC Address Table Size
16,000
L3 Table Size
ARP Entries
768
IPv4 Routes
64
Packet Buffer Size
2 MB
Access Lists
IPv4
128
MAC
128
DHCP Server (Local Networks)
✓
DHCP Relay
✓
Inter-VLAN Routing (Local Networks)
✓
Static Routing (Local Networks)
✓
LACP Port Aggregation
✓
STP & RSTP
✓
QoS (DSCP)
✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
✓
IGMP Snooping
✓
802.1X Control
✓
MAC-Based ACLs & Device Isolation
✓
DHCP Snooping & Guarding
✓
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
MAC Address Blocking
✓
IP-Based ACLs & Network Isolation
✓
MAC-Based Port Restriction
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
LLDP-MED
✓
Voice VLAN
✓
Loop Protection
✓
Virtual Network Override
✓
PoE Ports
PoE+
16
PoE++
8
Max. PoE Wattage per Port by PSE
PoE
15.4W
PoE+
30W
PoE++
64W
Max. Power Consumption
50W (Excluding PoE Output) 450W (Including PoE Output)
Power Method
(1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input
Power Input Method
AC input
Power Supply
AC/DC, internal, 450W
Supported Voltage Range
100—240V AC
Management
Ethernet AR
Heat Dissipation
170.6 BTU/hr (Excluding PoE Output)
Weight
Without mounting brackets: 4.3 kg (9.5 lb) With mounting brackets: 4.4 kg (9.7 lb)
Enclosure Material
SGCC steel
Supported Rack Depth
400~1200 mm (15.7-47.2")
LCM Display
1.3" touchscreen
ESD Protection
Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel: 13790-20-08356
Application Requirements
UniFi Network
Version 5.10.5 and later
