MIKROTIK RB 912UAG-2HPND - OUT (BaseBox 2)(MKT0059)
₹7,100.00 ₹7,800.00
Out of stock

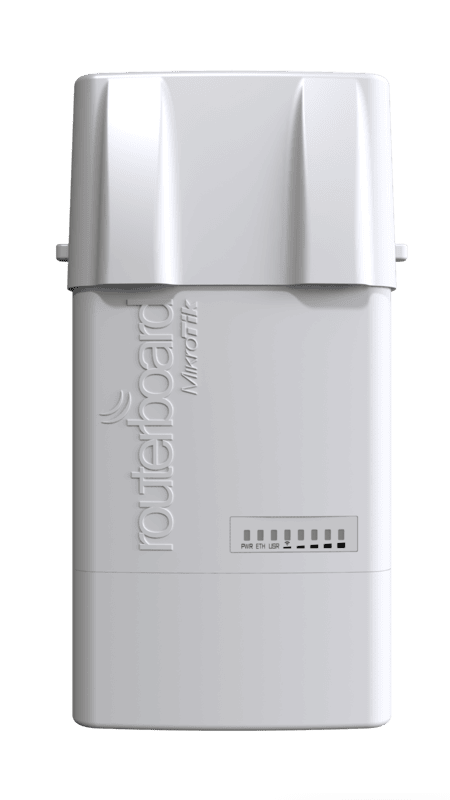

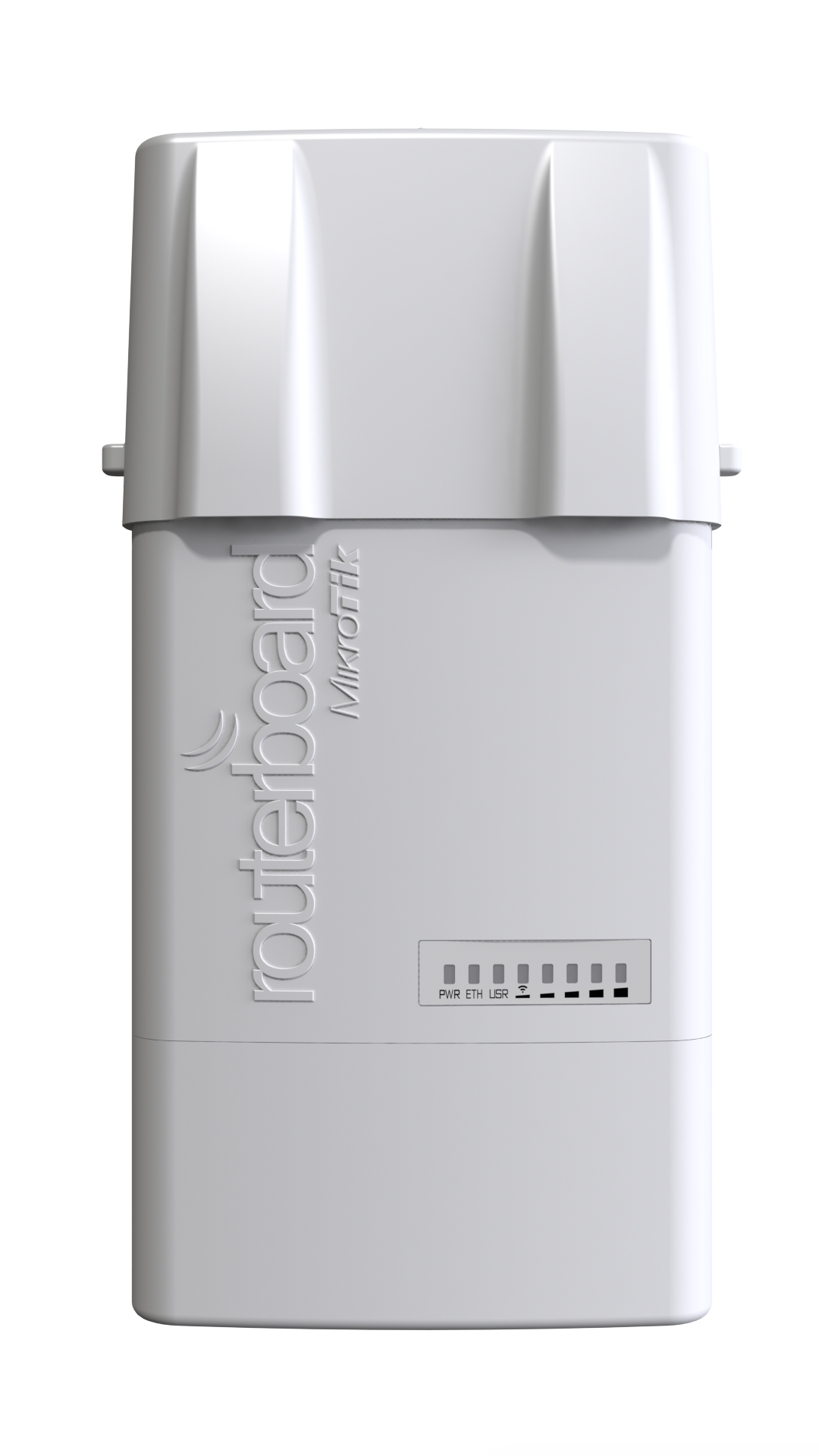

The BaseBox2 is an outdoor 2.4Ghz wireless device, based on our popular RB912 model, fitted with two SMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the BaseBox miniPCIe slot for one more wireless interface to make a dual band device, or a 3G/4G modem.
The case can be opened with one hand, and is protected against the elements. USB, Ethernet and a Grounding wire exits are provided on the bottom, behind a protective door.
Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. Package also includes a PoE injector and power supply unit.
Product Details
Specifications
Specifications
| Details | |
|---|---|
| Product code | RB912UAG-2HPnD-OUT |
| Architecture | MIPSBE |
| CPU | AR9342 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | 246x135x50mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 64 MB |
| Storage type | NAND |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
Powering
| Details | |
|---|---|
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 10 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 8-30 V |
Wireless specifications
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Wireless 2.4 GHz chip model | AR9342 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Peripherals
| Details | |
|---|---|
| Number of SIM slots | 1 Modem (Mini SIM) |
| MiniPCI-e slots | 1 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | FCC, IC |
| IP | IP54 |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 30 | -100 |
| 11MBit/s | 30 | -94 |
| 6MBit/s | 30 | -96 |
| 54MBit/s | 27 | -78 |
| MCS0 | 30 | -96 |
| MCS7 | 24 | -73 |
Router
- Wireless StandardWi-Fi 4
- Frequency Band2.4 GHz
- Speed 2.4 GHzMbps
- Size of RAM64 MB
Switch
- 10/100/1000 Ethernet ports1
- POE InPassive POE
