Mikrotik RB 911-5HND
₹3,132.00
Perfect for building low cost CPE devices.

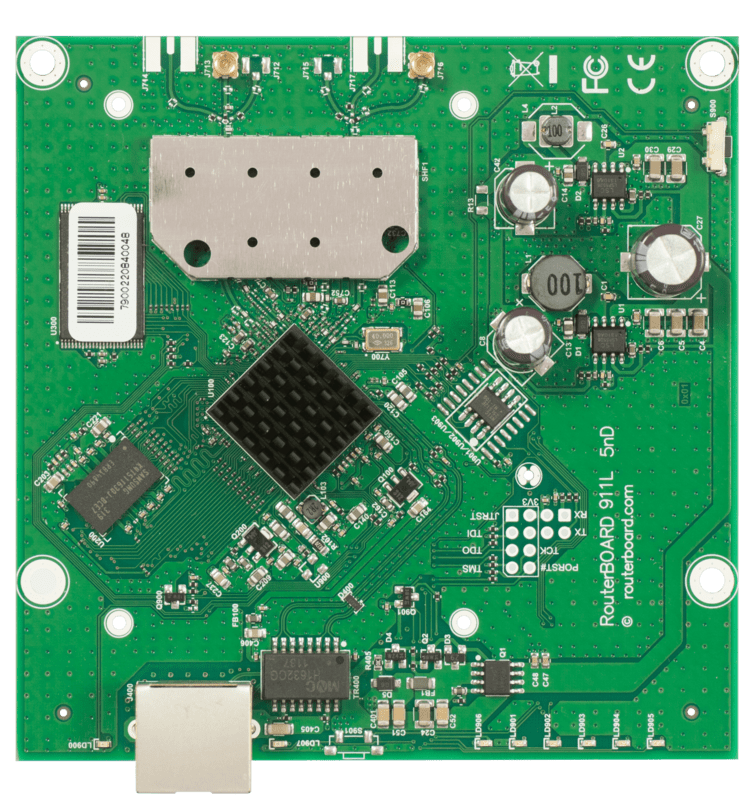

The RB911-5HnD is a small CPE type RouterBOARD wireless router with an integrated 5Ghz Dual Chain wireless card. It’s equipped with powerful 600MHz CPU, providing superb value for money.
- RB911-5HnD-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
- RB911-5HnD (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Product Details
Specifications
Specifications
| Details | |
|---|---|
| Product code | RB911-5HnD |
| Architecture | MIPSBE |
| CPU | AR9344 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | 105x105mm |
| RouterOS license | 3 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
Powering
| Details | |
|---|---|
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 7 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 6-30 V |
Wireless specifications
| Details | |
|---|---|
| Wireless 5 GHz Max data rate | 300 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n |
| Wireless 5 GHz chip model | AR9344 |
| Wireless 5 GHz generation | Wi-Fi 4 |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP00 |
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 26 | -96 |
| 54MBit/s | 22 | -77 |
| MCS0 | 26 | -96 |
| MCS7 | 21 | -71 |
Router
- Wireless StandardWi-Fi 4
- Frequency Band5 GHz
- Speed 5 GHzMbps
- Size of RAM64 MB
Switch
- 10/100 Ethernet ports1
- POE InPassive POE
