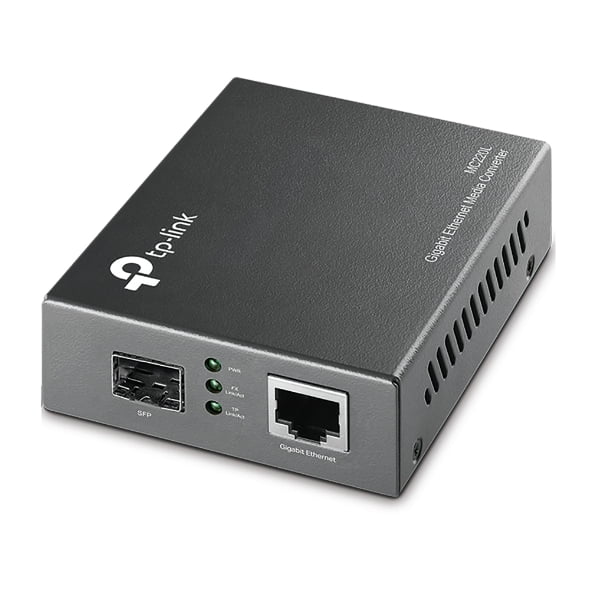

TP LINK MC220L
₹1,509.00
- 1 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Complies with IEEE 802.3ab and IEEE 802.3z
- FX port supports hot-swappable
- Maximum transmission distance depends on the inserting SFP
Product Details
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z |
|---|---|
| Basic Function | Auto-negotiation of Half-Duplex / Full-Duplex transfer mode Maximum transmission distance depends on the inserting SFP module |
| Ports | 1 1000M SFP port 1 10/100/1000M RJ45 port (Auto MDI/MDIX) |
| Wave Length | Depends on the used SFP module |
| Network Media 1000BASE-X | Multi-mode/Single-mode SFP module |
| Network Media 1000BASE-T | UTP category 5, 5e cable (maxium 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| LED Indicators | PWR, Link/Act |
| Dimensions (W*D*H) | 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) |
| Power Supply | External Power Adapter |
| Max Power Consumption | 1.7W |
| Safety & Emission | FCC, CE, RoHS |
| Package Contents | • Media Converter MC220L • Power Adapter • Installation Guide |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
