Tenda AC-1200 Smart Dual Band Ac
₹1,310.00
Out of stock

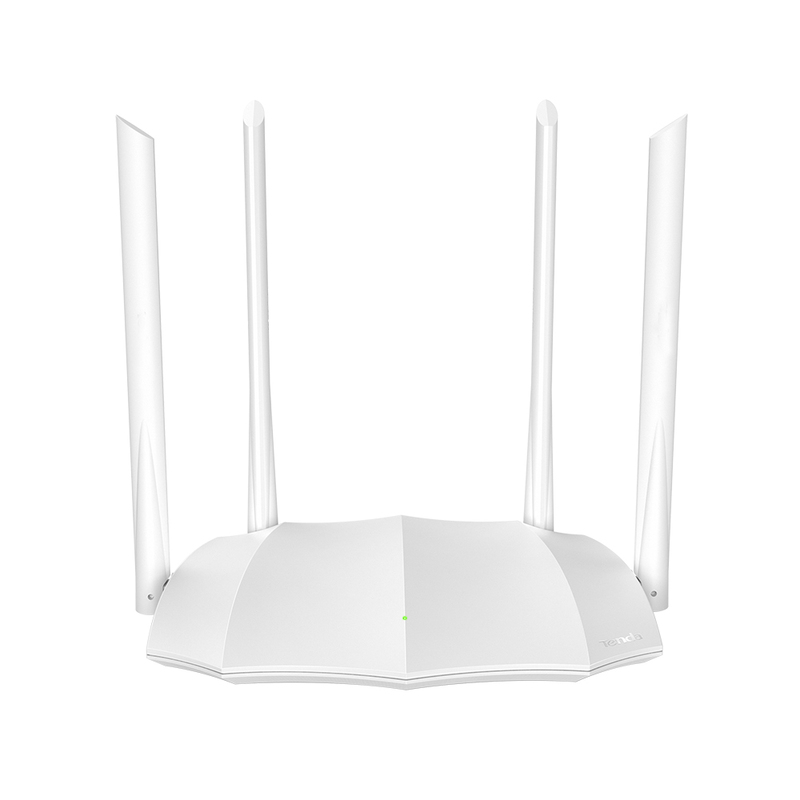

AC5 is an AC1200 dual band WiFi router, designed for medium-sized apartment with a 100Mbps fiber access. It provides WiFi speed up to 1167 Mbps (5GHz: 867Mbps and 2.4GHz: 300Mbps). Adopted the integrated dual-band technology, combining 2.4GHz and 5GHz signals under one WiFi name. The faster band would be allocated to your devices automatically by our dynamic optimization system. Meanwhile, featured with 4*6dBi high-gain antennas and equipped with a 28nm high performance CPU, it brings a better internet experience. AC5 supports IPv6 protocol, it can reduce the data transmission time and minimize the lag. Furthermore, the remote management function by the Tenda WiFi App provides the easiest way to manage AC5.
Product Details
Hardware
Standard&Protocol IEEE802.3, IEEE802.3u
Interfaces 10/100 Mbps WAN port*1
10/100 Mbps LAN port*3
Antenna 5dBi External antenna*4
Button WPS/Reset button*1, WiFi on/off button*1
Power AC input: 100-240V- 50/60Hz, 0.2A
DC output: 9V 1A
Dimension 171mm*171mm*210mm(L*W*H)
LED Indicator SYS*1, WiFi*1, WAN*1, LAN*3
Wireless
Wireless Standard IEEE 802.11ac/a/n @5GHz
IEEE 802.11b/g/n @2.4GHz
Data Rate 5GHz: 867Mbps
2.4GHz: 300Mbps
Frequency Concurrent dual band 2.4 GHz & 5 GHz
Transmission Power CE:
<20dBm(2.4G <23dBm(5G)
FCC:
<30dBm
<30dBm
Basic Features SSID Broadcast: Enable/Disable
Beamforming
MU-MIMO
Wireless Security WPA-PSK/WPA2-PSK, WPA/WPA2
Wireless Security: Enable/Disable
WPS(WiFi Protected Set-up) fast encryption
WPS(WiFi Protected Set-up) fast encryption
Software
Internet Connection Type
PPPoE, Dynamic IP, Static IP
PPPoE(Russia), PPTP(Russia), L2TP(Russia)
PPPoE(Russia), PPTP(Russia), L2TP(Russia)
Operating Mode Wireless Router Mode
Universal Repeater Mode
WISP Mode
AP Mode
WISP Mode
AP Mode
DHCP Server DHCP Server
DHCP Client List
DHCP Reservation
DHCP Reservation
Virtual Server Port Forwarding
DMZ Host
UPnP
UPnP
Security Client Filter (support blacklist and whitelist)
Parental Control
Remote Management
Remote Management
Firewall Forbid UDP flood attack
Forbid TCP flood attack
Forbid flood attack
Forbid WAN PING from internet
Forbid flood attack
Forbid WAN PING from internet
DDNS Support DDNS, No-ip, 3322.org, Oray.com, 88ip
VPN PPTP
L2TP
PPTP client
L2TP client
PPTP client
L2TP client
Special Features PPPoE Username/Password Clone
Smart WiFi Schedule
Smart Sleeping Mode
Smart LED on/off
Tenda WiFi App
Smart Sleeping Mode
Smart LED on/off
Tenda WiFi App
Others IPv6 Features Supported
Bandwidth Control
Guest Network
IPTV
MAC Address Clone
System Log
Backup & Restore configurations
Online firmware upgrade
Local firmware upgrade
Guest Network
IPTV
MAC Address Clone
System Log
Backup & Restore configurations
Online firmware upgrade
Local firmware upgrade
Others
Temperature Operating Temperature:
0℃~40℃
Storage Temperature:
-40℃ ~ 70℃.
Humidity Operating Humidity:1
0%~90% RH non-condensing
Storage Humidity:
5% ~ 90%RH non-condensing.
Certification CE/FCC/RoHS
EIRP Power (Max) 2.400 – 2.4835 GHz: 19.85 dBm (EIRP)
5.150 – 5.250 GHz: 22.96dBm (EIRP)
Package Contents AC1200 Smart Dual-Band WiFi Router
Power Adapter
Quick Installation Guide
Ethernet Cable
Quick Installation Guide
Ethernet Cable
