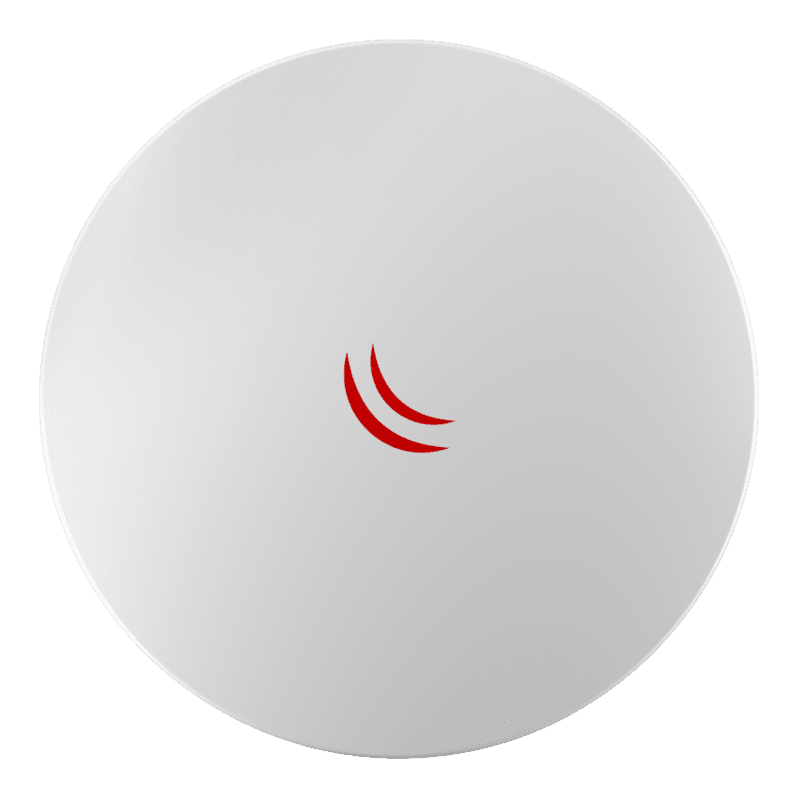

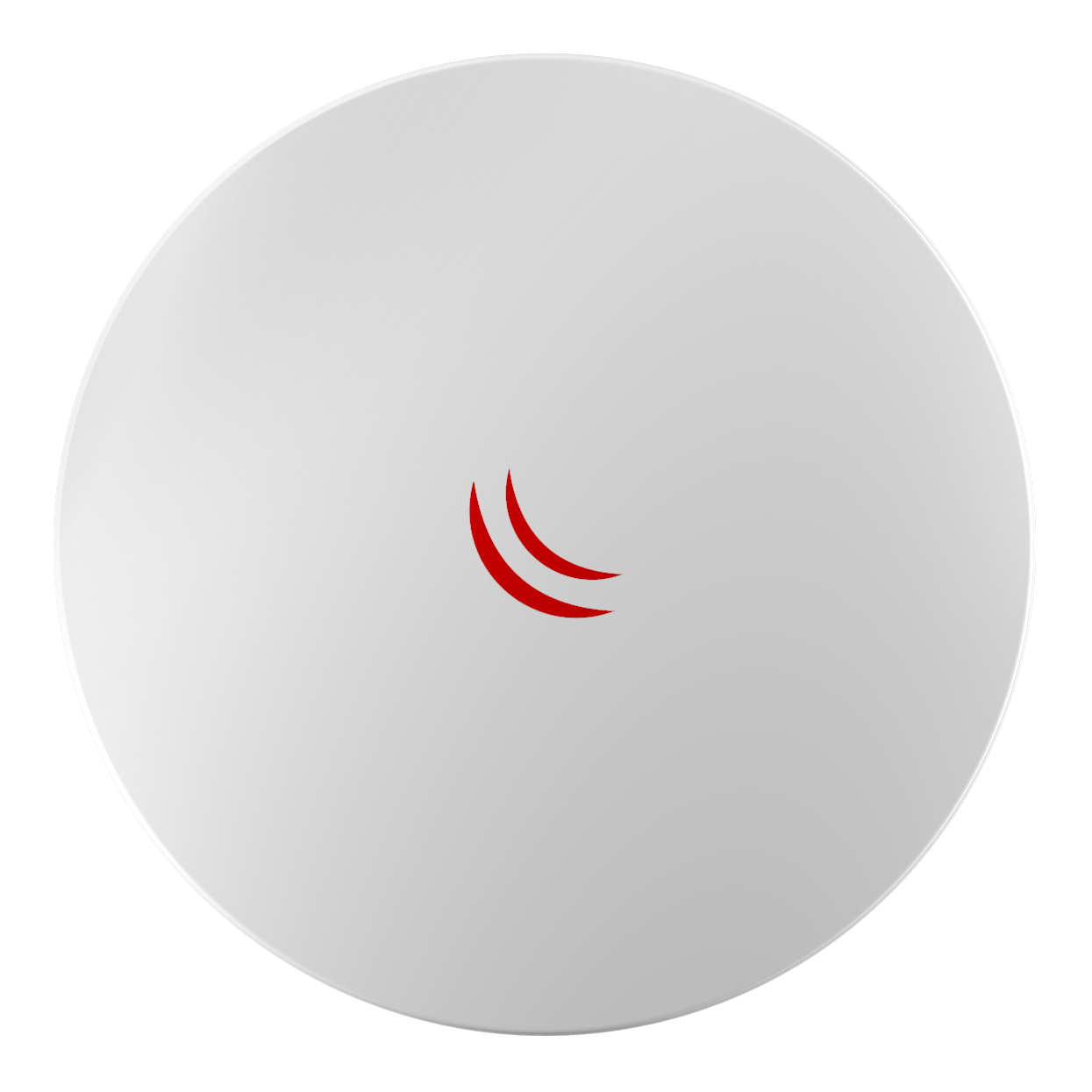

The DynaDish 5 is a new 802.11ac outdoor device with an integrated antenna. Compact in it’s design, it is a simple and completely integrated product with everything you need to quickly install a reliable point to point link. The DynaDish 5 is powered by a new 720 MHz CPU from Qualcomm.
Specifications Details Product code RBDynaDishG-5HacDr3 Architecture MIPSBE CPU QCA9557 CPU core count 1 CPU nominal frequency 720 MHz Dimensions Ø 404mm, height 175mm (without mount) RouterOS license 3 Operating System RouterOS Size of RAM 128 MB Storage size 16 MB Storage type FLASH MTBF Approximately 200'000 hours at 25C Tested ambient temperature -40°C to 70°C
Powering Details Number of DC inputs 1 (PoE-IN) Max power consumption 9 W Cooling type Passive PoE in 802.3af/at PoE in input Voltage 11-60 V
Wireless specifications Details Wireless 5 GHz Max data rate 867 Mbit/s Wireless 5 GHz number of chains 2 Wireless 5 GHz standards 802.11a/n/ac Antenna gain dBi for 5 GHz 25 Wireless 5 GHz chip model QCA9892 Wireless 5 GHz generation Wi-Fi 5
Ethernet Details 10/100/1000 Ethernet ports 1
Other Details PCB temperature monitor Yes Voltage Monitor Yes Beeper Yes
Certification & Approvals Details Certification CE, FCC, IC, EAC, ROHS IP IP54
Wireless specifications 5 GHz Transmit (dBm) Receive Sensitivity 6MBit/s 31 -96 54MBit/s 28 -81 MCS0 30 -96 MCS7 27 -77 MCS9 22 -72
