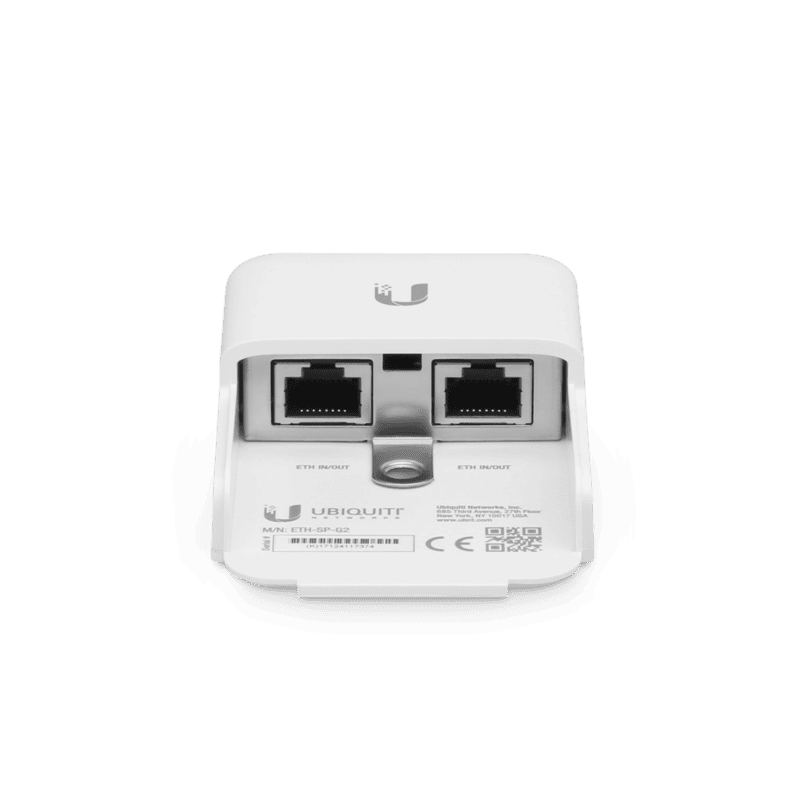

Ubiquiti Surge Protector ETH- SP-G2
₹956.00
Out of stock
ESD protection for outdoor high-speed networks.
Protects outdoor Ethernet devices
(2) Passive, surge-protected RJ45 connections
Quick and easy installation
Compatible with GbE networks
Product Details
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3") |
| Weight | 80 g (2.8 oz) |
| Weatherproofing | IPX5 |
| Hardware | |
| Networking interface | (2) RJ45 female connectors |
| ESD/EMP protection | Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs |
| DC spark-over voltage | 90V @ 100V/s |
| Max. impulse spark-over voltage | 700V @ 1kV/µs |
| Discharge Current | 10kA+ |
| Max. insulation resistance | 1G ohm @ 50V |
| Max. capacitance | 1.0 pF @ 1 MHz |
| Data line protection | GbE |
| PoE support | Yes |
| Shock and vibration certification | ETSI300-019-1.4 Standard |
| Ambient operating temperature | -30 to 65° C (-22 to 149° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
