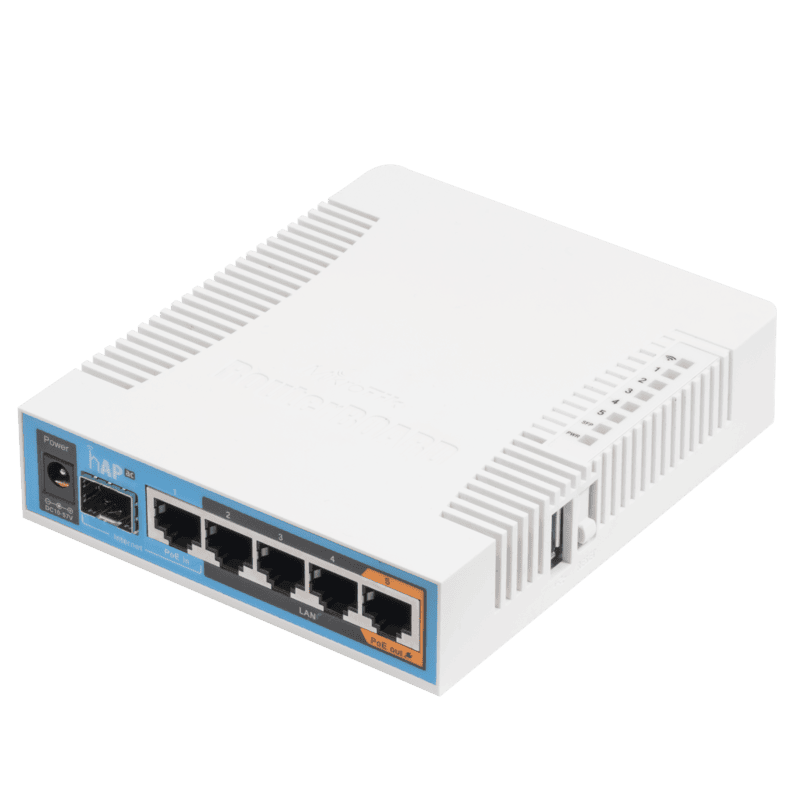

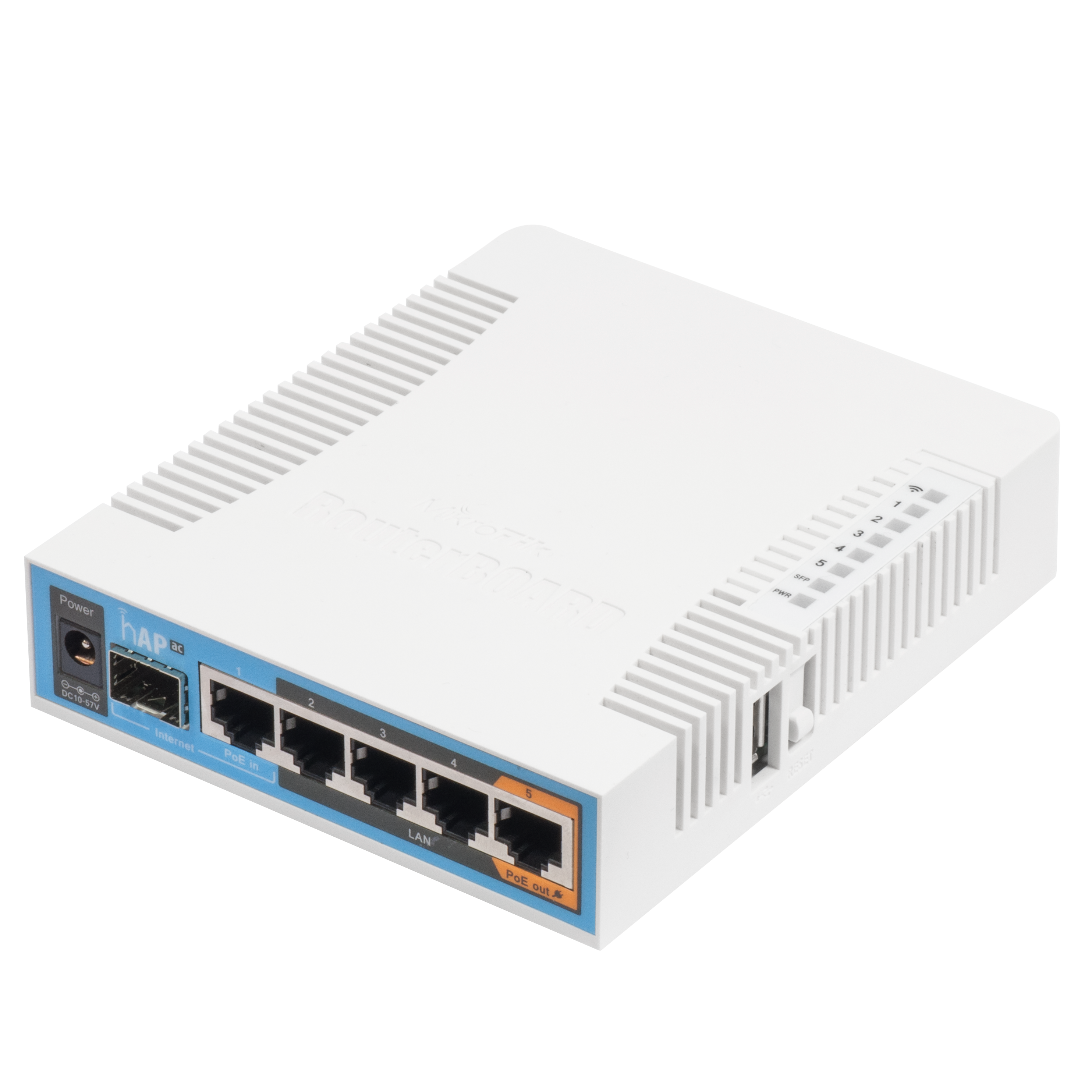

Mikrotik RB962UiGS-5HacT2HnT H(MKT0133A)
The hAP ac is our most universal home or office wireless device. It is a dual band device with Gigabit ports that allow the full advantages of 802.11ac technology speed, while maintaining compatibility with legacy devices in 2GHz 802.11 b/g/n and 5GHz a/n modes.
The omnidirectional antennas allow to mount the hAP ac in any location, and the high power transmitter will ensure good coverage for the mobile devices in your home, office or public location.
Other helpful features include a USB port for attaching extra storage or a 3G/4G modem, PoE output on the last Ethernet port, to power other RouterBOARD devices without needing an extra power adapter and an SFP cage, for connecting active or passive optical network modules.
We have two versions available.
- RB962UiGS-5HacT2HnT-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
- RB962UiGS-5HacT2HnT (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Specifications
| Details | |
|---|---|
| Product code | RB962UiGS-5HacT2HnT |
| Architecture | MIPSBE |
| CPU | QCA9558 |
| CPU core count | 1 |
| CPU nominal frequency | 720 MHz |
| Switch chip model | QCA8337 |
| Dimensions | 114 x 137 x 29mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
Wireless capabilities
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 450 Mbit/s |
| Wireless 2.4 GHz number of chains | 3 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 2.5 |
| Wireless 2.4 GHz chip model | QCA9558 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Wireless 5 GHz Max data rate | 1300 Mbit/s |
| Wireless 5 GHz number of chains | 3 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 2 |
| Wireless 5 GHz chip model | QCA9880 |
| Wireless 5 GHz generation | Wi-Fi 5 |
| WiFi speed | AC1750 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 5 |
Fiber
| Details | |
|---|---|
| SFP ports | 1 |
Peripherals
| Details | |
|---|---|
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 11-57 V |
| Max power consumption | 17 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 11-57 V |
PoE-out
| Details | |
|---|---|
| PoE-out ports | Ether5 |
| PoE out | Passive PoE |
| Max out per port output (input 18-30 V) | 700 mA |
| Max out per port output (input 30-57 V) | 350 mA |
| Max total out (A) | 700 mA |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP20 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 29 | -100 |
| 11MBit/s | 29 | -94 |
| 6MBit/s | 29 | -96 |
| 54MBit/s | 26 | -81 |
| MCS0 | 29 | -96 |
| MCS7 | 25 | -77 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 28 | -96 |
| 54MBit/s | 25 | -81 |
| MCS0 | 28 | -96 |
| MCS7 | 24 | -77 |
| MCS9 | 21 | -72 |
Router
- Wireless StandardWi-Fi 5
- Frequency BandBoth 2.4GHz & 5GHz
- Speed 2.4 GHzMbps
- Speed 5 GHzMbps
- Antenna Gain Wireless 2.4 GHz2.5dBi
- Antenna Gain Wireless 5GHz2dBi
- Size of RAM128 MB
Switch
- 10/100/1000 Ethernet ports5
- 1G / SFP Ports1
- POE InPassive POE
- POE OutPassive PoE
- POE Out PortsEther5
