Tenda O-3
₹2,500.00
Out of stock

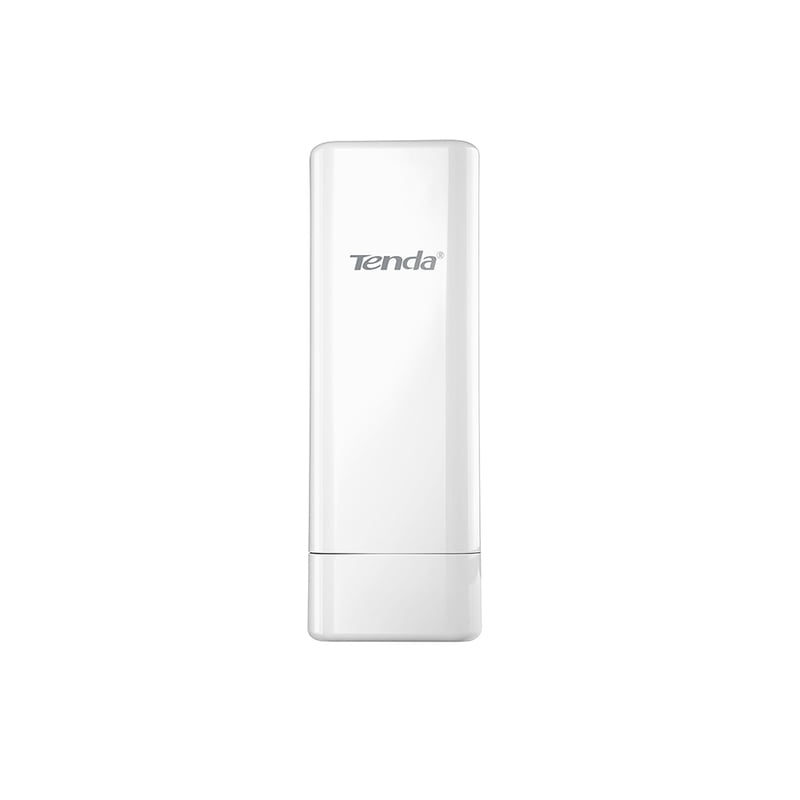

O3 2.4GHz Outdoor CPE is designed to WISP CPE solutions and long distance wireless network solutions for video surveillance and data transmission. It features with 12dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network. Adopt of auto-bridging technology,two CPE can connect to each other automatically to make it easy to setup.
Product Details
Product Information
Model O3
Dimension 270*94.86*67.5mm
Deployment Pole Mount/Wall Mount
Application Scenarios PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance
Hardware
Frequency Range 2.4GHz
Compliant Standards IEEE 802.11b/g/n
Maximum Wireless Rate
150Mbps
Interfaces 2*10/100Mbps Ethernet Port
Antenna Polarization Horizational Polarization
Antennas Gain 12dbi
Antenna Beamwidth
Horizontal: 60° Vertical: 30°
GND 1*GND
Reset Button 1*Reset Button
Power Consumption 4.3W
Waterproof Level IP65
LED Indicator PoE/LAN,LED1,LED2,LED3
Power Method 12V1A Passive PoE
Lightning Protection 6000V
Passive PoE
Passive power over ethenet via PoE/LAN (+4,5pins -7,8pins)
Voltage range: 9-13.8V DC
Voltage range: 9-13.8V DC
Reception Sensitivity
11b 1Mbps -92dBm±1.5dBm
11n MCS0: -92±1.5dBm
11n MCS7: -72±1.5dBm
11n MCS0: -92±1.5dBm
11n MCS7: -72±1.5dBm
Software
TDMA /
Operating mode
AP/Station/WISP/P2MP/WDS Repeater/Router
Enable/Disable Wireless Radio
Support
SSID Hidden Support
Wireless Client isolation
Support
SSID Isolation Support
Channel Bandwidth 20/40MHz
Channel Shift
/
Wireless Access Control
Support
Weak Signal Client Limitation
Support
Transmission Power
Adjustable power by 1dBm
WMM Capable Support
APSD Capable Support
Wireless Security 64/128 WEP,WPA- PSK,WPA2- PSK,WPA&WPA2- PSK,WPA,WPA2
Transparent Bridge Support
VLAN Tagging for SSID
Support
DHCP Server Support
VPN Pass-Through PPTP,L2TP
Remote Web accessSupport
Schedule Reboot Support
Page Timeout Support
Ping Watchdog Support
Dyndns noip, dyndns.org
Network Diagnoses
Ping, Traceroute, Signal Scan
Time and Date Setting
Support
Firmware upgrade
Support
Backup/Restore Configuration
Support
Username Managerment
Support
System Logs Support
Managed By Controller
PC Software CPE Assistant
Others
Package Contents
1*2.4GHz 11n 12dBi 150Mbps outdoor CPE O3
1*Power Adapter
1*PoE Injector
1*Quick Installation Guide
1*Power Adapter
1*PoE Injector
1*Quick Installation Guide
Operation Temperature
-30℃ ~ 60℃
Storage Temperature
-40℃ ~ 70℃
Operating Humidity
10%~90% non-condensing
Storage Humidity
10%~90% non-condensing
Default login IP 192.168.2.1
Default Login Username
admin
Default Login Password
admin
Certification FCC/CE/RoHS
