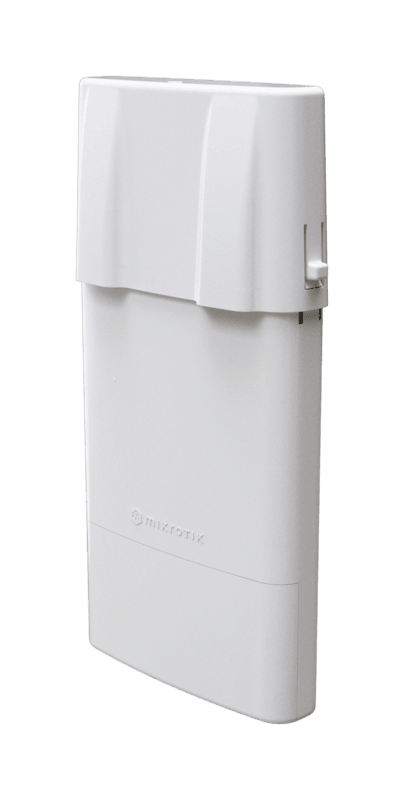

Mikrotik L11UG-5HaxD-NB ( Net Box 5 AX)
Mikrotik L11UG-5HaxD-NB ( Net Box 5 AX)
Mikrotik L11UG-5HaxD-NB ( Net Box 5 AX)
Mikrotik L11UG-5HaxD-NB ( Net Box 5 AX)
Mikrotik L11UG-5HaxD-NB ( Net Box 5 AX)

Mikrotik L11UG-5HaxD-NB ( Net Box 5 AX)

₹10,800.00 ₹11,000.00

NetBox 5 ax is a powerful dual-chain outdoor device that can fill multiple roles in your setups: AP/CPE/Point-to-point. The strong 5 GHz Wi-Fi 6 radio comes with handy RP-SMA connectors. That means you can add a HGO-antenna-OUT and you’ve got yourself an excellent omnidirectional AP… or try the mANT30 PA antenna to create a powerful long-range point-to-point link for distances up to 30 kilometers.*

This weatherproof board features a modern Qualcomm Maple CPU based on the ARM architecture, 256 MB of RAM, a USB port for extra storage or other needs, and a Gigabit Ethernet port with PoE-in.

We’ve designed the case to make a sysadmins life easier. You can open the case effortlessly with just one hand. At the bottom, concealed behind a protective door, you’ll find exits for Ethernet. Equipped with a mounting loop for easy tower/pole installation, it also offers a separate DIN rail mount.

If you’ve read this far, here’s a little bonus feature: we’ve kept the good old beeper for various alarms or creative outputs.

*It's important to note that while longer links are feasible, their reliability may vary. Additionally, the distance achievable greatly depends on the antenna selected for use.

Quantity
Add to Cart
Product Details

Specifications

Details
Product codeL11UG-5HaxD-NB
ArchitectureARM
CPUIPQ-5010
CPU core count2
CPU nominal frequency800 MHz
RouterOS license4
Operating SystemRouterOS v7
Size of RAM256 MB
Storage size128 MB
Storage typeNAND
MTBFApproximately 200'000 hours at 25C
Tested ambient temperature-40°C to 70°C
Suggested price$109.00

Powering

Details
Number of DC inputs1 (PoE-IN)
Max power consumption15 W
Max power consumption without attachments6 W
Cooling typePassive
PoE inPassive PoE
PoE in input Voltage18-28 V

Wireless specifications

Details
Wireless 5 GHz Max data rate2400 Mbit/s
Wireless 5 GHz number of chains2
Wireless 5 GHz standards802.11a/n/ac/ax
Wireless 5 GHz chip modelQCN-6102
Wireless 5 GHz generationWi-Fi 6

Ethernet

Details
10/100/1000 Ethernet ports1

Peripherals

Details
Number of USB ports1
USB Power ResetYes
USB slot typeUSB type A
Max USB current (A)1.5

Other

Details
PCB temperature monitorYes
Voltage MonitorYes
BeeperYes

Certification & Approvals

Details
CertificationCE, FCC, IC, EAC, ROHS
IP54

Wireless specifications

5 GHzTransmit (dBm)Receive Sensitivity
6MBit/s28-96
54MBit/s26-80
MCS028-96
MCS725-75
MCS923-70
MCS1120-67
