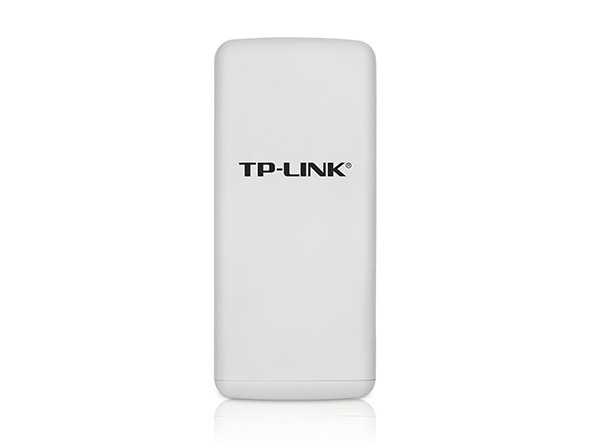

Tp Link TL-WA 5210G
Non-returnable
₹4,500.00
Out of stock
- Complies with IEEE 802.11b/g, wireless speed up to 54Mbps
- Outdoor weatherproof and 4000V lightning/15KV ESD protection design
- 12dBi dual-polarized antenna to build long distance WiFi connection up to 2km
- High Power to boost your signal coverage and link speed
- Passive Power over Ethernet for flexible deployment
Product Details
| HARDWARE FEATURES | |
|---|---|
| Interface | 1 10/100Mbps Auto-Sensing RJ45 Port(Auto MDI/MDIX, PoE) 1 External Reverse SMA Connector One Grounding Terminal |
| Button | Reset Button |
| External Power Supply | 12VDC / 1.0A Linear PSU |
| Wireless Standards | IEEE 802.11g, IEEE 802.11b |
| Dimensions ( W x D x H ) | 10.4 × 4.7 × 3.2 in. (265x120x83mm) |
| Antenna | 12dBi Dual-Polarized Directional Antenna |
| Antenna Beamwidth | Horizontal: 60° Vertical: 30° |
| Protection | 15kV ESD Protection, 4000V Lightning Protection Grounding Terminal Integrated |
| Frequency | 2.4-2.4835GHz |
|---|---|
| Signal Rate | 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
| Reception Sensitivity | 802.11g 54M: -76dBm 48M: -78dBm 36M: -82dBm 12M: -91dBm 9M:-92dBm 802.11b 11M:-90dBm 5.5M:-92dBm 1M:-98dBm |
| Transmit Power | <20dBm (EIRP, For countries using CE Standards) <27dBm (Peak Output Power, For countries using FCC Standards) |
| Wireless Modes | AP Router Mode AP Client Router Mode (WISP Client) AP/Client/WDS Bridge/Repeater mode |
| Wireless Functions | WDS Bridge, Wireless Statistics |
| Wireless Security | SSID Enable/Disable MAC Address Filter 64/128/152-bit WEP Encryption WPA/WPA2/WPA-PSK/WPA2-PSK (AES/TKIP) Encryption |
| Wireless Range | 2km with Integrated Antenna 15km Maximum (High gain directional antenna required) |
| Advanced Functions | Up to 60 meters PoE is supported Provides 4-level signal LED indicator |
| Certification | FCC, RoHS |
|---|---|
| Package Contents | TL-WA5210G Power Supply Unit Power Injector Resource CD Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC OS, NetWare, UNIX or Linux. |
| Environment | Operating Temperature: -30°C~70°C (-22℉~158℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing |
