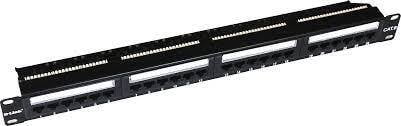

D -Link Cat 6 24 Port Jack Panel

D -Link Cat 6 24 Port Jack Panel

 Six Port RJ45 modules applied
• ID stripes for identifying port allocations
• IDC: suitable for 22-26 AWG stranded   and solid wire
• Compatible with both 110& Krone   punch down tools
• Improved Cable Management with  optional cable management bar
• Available in 1U and 2U
Add to Cart
Product Details
1. Identification: ID plate, PVC, Transparent color with paper
2. Panel: SPCC, 1.5mm thickness with Black (RAL 9005) color painted
3. RJ45 Jack: Housing: ABS, UL 94V-0 Contact Brackets: PC, UL 94V-2, Transparent color
4. RJ45 Jack Contact: Material: Phosphor Bronze with Nickel Plated Finish: 50 micro-inches Gold plated on plug contact area
5. IDC: Housing: PC+ Glass Fiber, UL 94V-2 Terminal: phosphor Bronze with Tin plated
6. Jack Bracket Set: ABS, UL 94V-0
7. Support Bar: SPCC, 1.5 mm thickness        with Black (RAL 9005) color painted
8.    PCB: FR4, UL 94V-0
