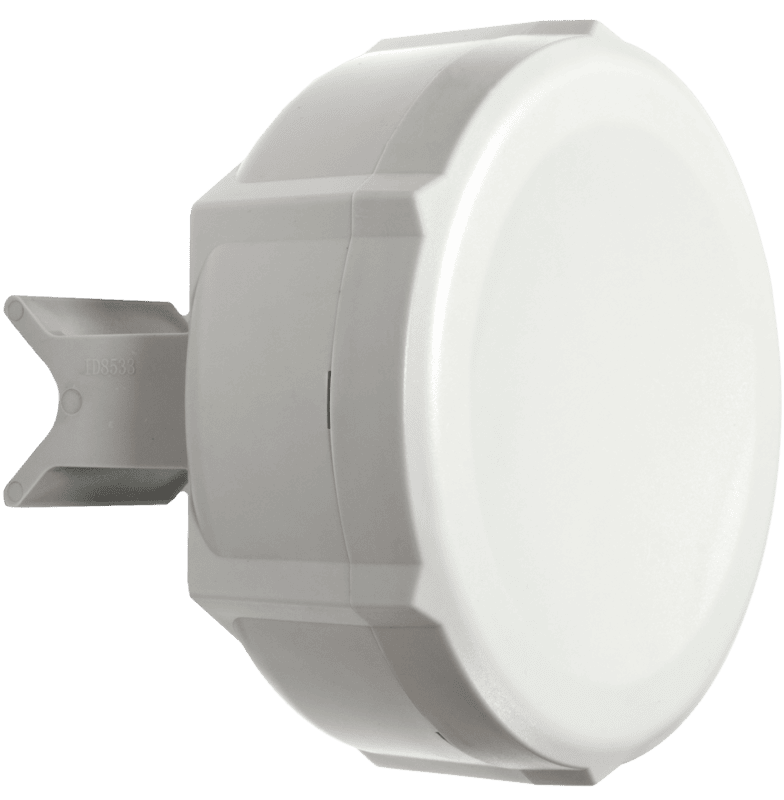

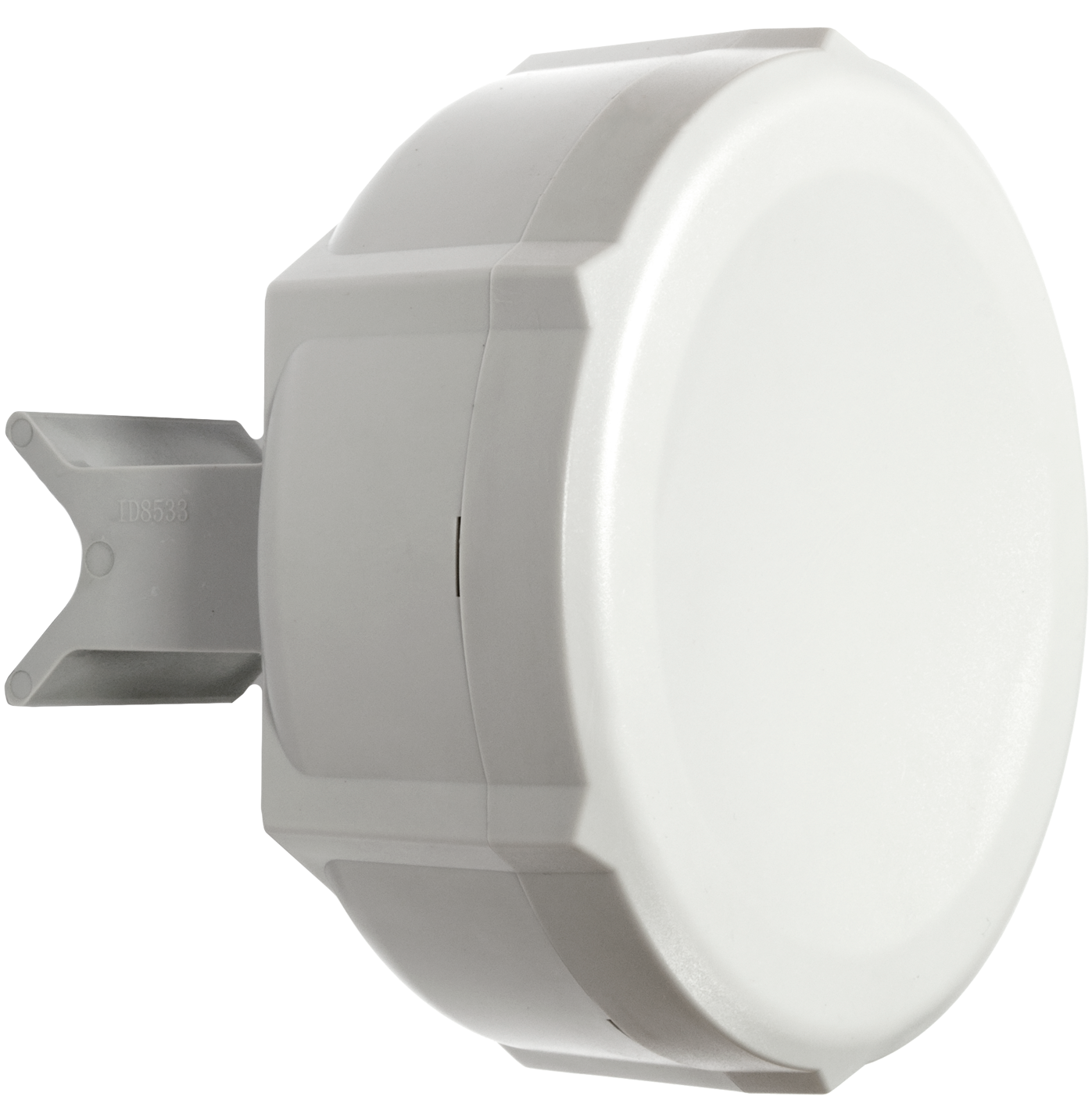

MIKROTIK ROUTER BOARD SXTG-2HND(MKT0052)
₹6,475.00
We are glad to introduce our first complete AP/CPE for 2.4GHz - SXTG2HnD! It's powerful 60 degrees 2x2 MIMO 10dbi sector antenna with wireless on-board- you can use it as a Sector AP, to make wireless point-to-point links or as a CPE- whatever you prefer! It comes with L4 license, perfect for covering outdoor area for hotspot clients.
Unit is equipped with Gigabit Ethernet port, so customers can take full advantage of dual chain MIMO. It has the same form factor as our popular 5Ghz SXT model.
Package contains SXTG-2HnD, mounting loops, PoE injector, power adapter
Unit is equipped with Gigabit Ethernet port, so customers can take full advantage of dual chain MIMO. It has the same form factor as our popular 5Ghz SXT model.
Package contains SXTG-2HnD, mounting loops, PoE injector, power adapter
Product Details
Specifications
Specifications
| Details | |
|---|---|
| Product code | RBSXTG-2HnD |
| Architecture | MIPSBE |
| CPU | AR9344 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | 140x140x56mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
Powering
| Details | |
|---|---|
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 11 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 8-30 V |
Wireless specifications
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 10 |
| Wireless 2.4 GHz chip model | AR9344 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, FCC, EAC, ROHS |
| IP | IP54 |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 32 | -96 |
| 11MBit/s | 30 | -90 |
| 6MBit/s | 32 | -96 |
| 54MBit/s | 29 | -80 |
| MCS0 | 32 | -96 |
| MCS7 | 28 | -74 |
Router
- Wireless StandardWi-Fi 4
- Frequency Band2.4 GHz
- Speed 2.4 GHzMbps
- Antenna Gain Wireless 2.4 GHz10dBi
- Size of RAM64 MB
Switch
- 10/100/1000 Ethernet ports1
- POE InPassive POE
