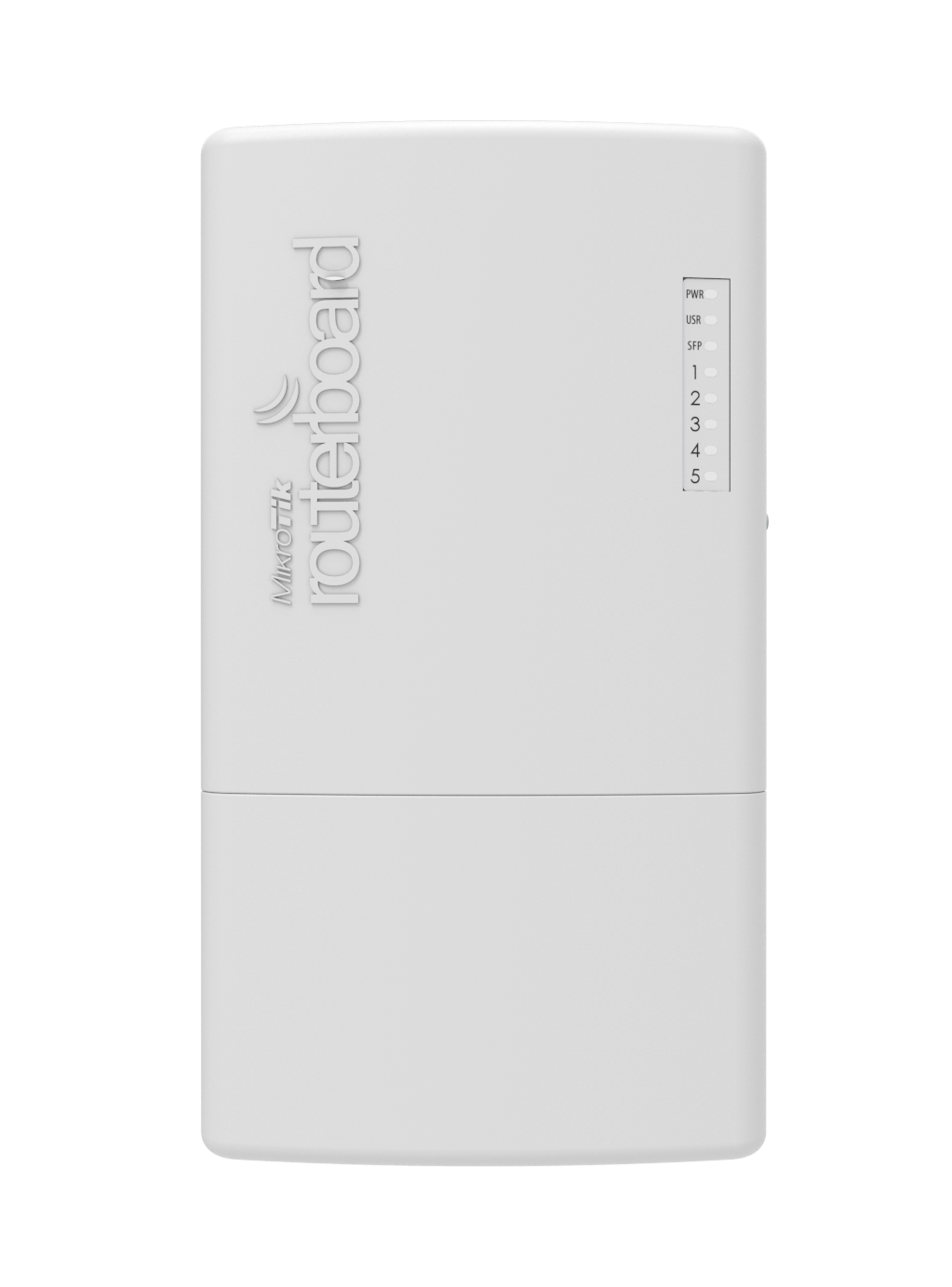

MIkrotik RB960PGS-PB( Power Box Pro )(MKT0125)
The PowerBox Pro is an outdoor five gigabit ethernet port router with PoE output on four ports. Since the device has a weatherproof outdoor case, you can mount it on a tower, or in other outdoor locations.
It also supports passive PoE input and passive or 802.3af/at PoE output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power 802.3at and af mode B compatible devices, if 48-57 input voltage is used.
The device has a SFP port for adding optical fiber connectivity. It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports.
Specifications
Details | |
---|---|
Product code | RB960PGS-PB |
Architecture | MIPSBE |
CPU | QCA9557 |
CPU core count | 1 |
CPU nominal frequency | 800 MHz |
Switch chip model | QCA8337 |
Dimensions | 125 x 52 x 225 mm |
RouterOS license | 4 |
Operating System | RouterOS |
Size of RAM | 128 MB |
Storage size | 16 MB |
Storage type | FLASH |
MTBF | Approximately 200'000 hours at 25C |
Tested ambient temperature | -40°C to 70°C |
Powering
Details | |
---|---|
Number of DC inputs | 2 (DC jack, PoE-IN) |
DC jack input Voltage | 12-57 V |
Max power consumption | 54 W |
Max power consumption without attachments | 6 W |
Cooling type | Passive |
PoE in | Passive PoE |
PoE in input Voltage | 12-57 V |
PoE-out
Details | |
---|---|
PoE-out ports | Ether2-Ether5 |
PoE out | 802.3af/at |
Max out per port output (input 18-30 V) | 1 A |
Max out per port output (input 30-57 V) | 450 mA |
Max total out (A) | 2 A |
Ethernet
Details | |
---|---|
10/100/1000 Ethernet ports | 5 |
Fiber
Details | |
---|---|
SFP ports | 1 |
Other
Details | |
---|---|
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
Certification & Approvals
Details | |
---|---|
Certification | CE, EAC, ROHS |
Router
- Size of RAM128 MB
Switch
- 10/100/1000 Ethernet ports5
- 1G / SFP Ports1
- POE InPassive POE
- POE Out802.3af/at
- POE Out PortsEther2-Ether5
