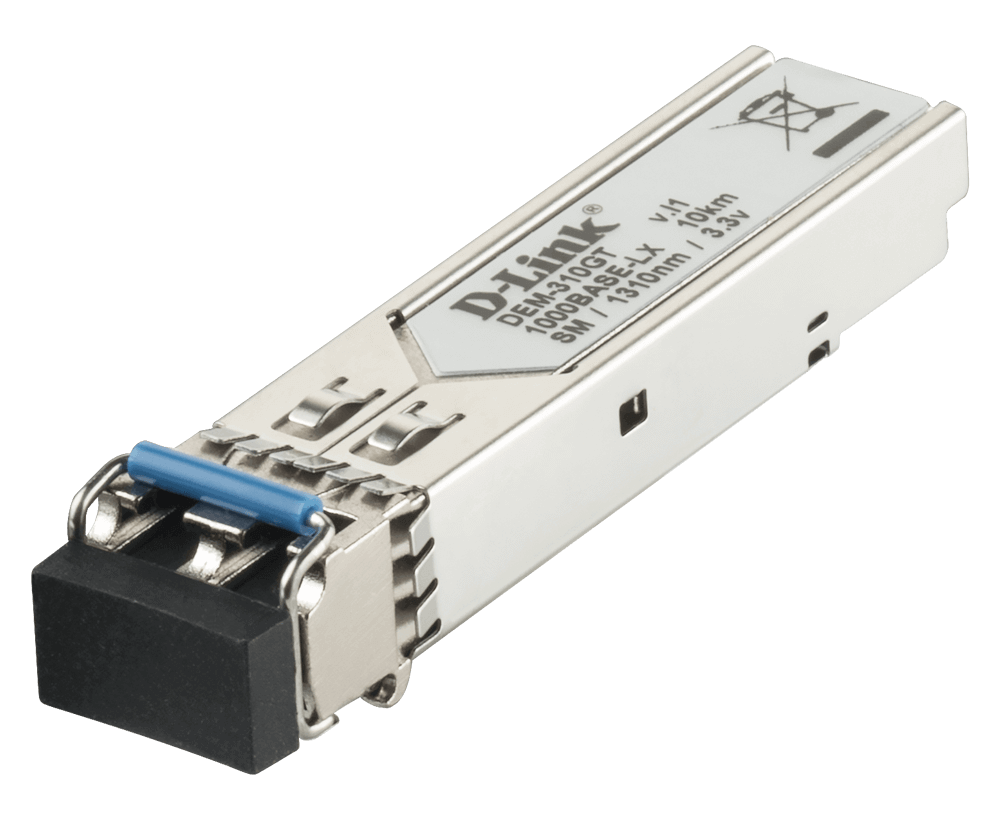

D-Link - DEM-310GT/IN
₹2,200.00
Out of stock
- Maximum distance of up to 10 km
- Hot-pluggable
- Single-mode fiber
- 1000BASE-LX (IEEE 802.3z standard)
- Duplex LC connector
- MSA, RoHS-compliant
Product Details
Specifications
| EMI: | FCC Class B, ICES-003 Class B, CE Class B, VCCI Class B |
|---|---|
| Safety: | FDA/CDRH, TUV, cUL |
| RoHS Compliant | Yes |
| Hot Pluggable | Yes |
| MSA Compliant | Yes |
| Hardware version | F1 |
| Cable Type | - single-mode 9/125um fiber: reach 10km - multi-mode 50/125um fiber: reach 2km - multi-mode 62.5/125um fiber: reach 550m |
| connector | Duplex LC Connector |
| single/bi Direction | single-direction |
| Wavelength | 1310 nm |
| Output Optical Power (TX Optical Power) | MAX.: -3 dBm |
| Interface | MIN.: - 21 dBm |
| Input Optical Power (RX Optical Power) | MAX.: - 3 dBm |
| Sensitivity | -21 dBm |
| Power | 3.3V |
| Max Input Current | 300mA |
| Power Budget (MIN Power Budget) | 11.5 dB |
| MAX Power Budget | 18dB |
| Heat Generated | 1.78kJ/h |
| Dimension ( W x D x H ) | 13.4mm x 56.4mm x 10.35mm |
| Weight | 16.5g |
| Operation Temperature | 0-70°C |
| Storage Temperature | -40-85°C |
| Humidity (Operating) | 10% ~ 90% |
| Humidity (Storage) | 5% ~ 90% |
| Speed | 1Gbps |
| Compliant Standard | IEEE-802.3z 1000BASE-LX |
| Transceiver Type | SFP |
| Fiber Channel FC-PI standard | 100-SM-LC-L |
| Fiber Media support | Single-Mode |
| Distance | 10KM |
