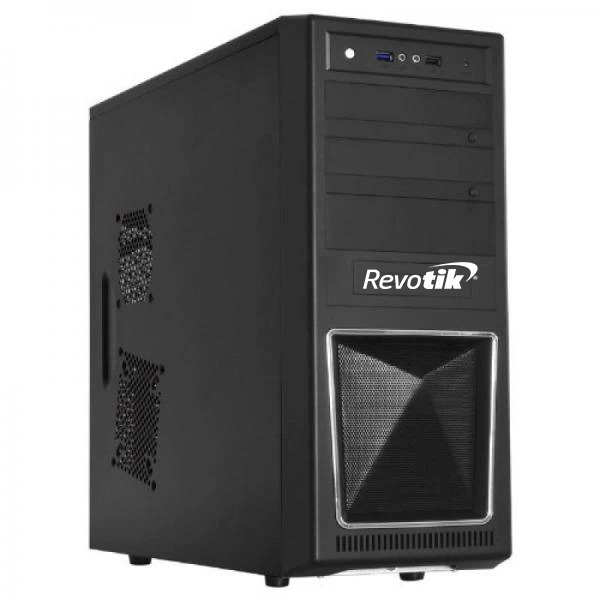

Revotik RVW-2403
₹0.00
Out of stock
- Processor - AMD RYZEN 5
- Upto 64 GB RAM
- Gigabyte Series Motherboard
- Tower Models
Product Details
| Model | RVW2403 |
| Available Operating Systems | Support for Windows 10 64-bit | Support for Windows 7 64-bit ubuntu |
| Processor family | CPU AMD RYZEN 5 3600 OEM |
| Available Processors | AMD RYZEN 5 (3.6 GHz base frequency, 32 MB L3 cache, 6 cores) |
| Chipset | AMD B450 |
| Maximum memory | 64 GB DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules |
| Memory slots | 4 DIMM |
| Storage Interface | 1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support) * Actual support may vary by CPU. * Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU. 2. 4 x SATA 6Gb/s connectors 3. Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors |
| Optical Drive | SATA DVD RW DRIVE |
| Onboard Graphics | 1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note) * Support for HDMI 2.0 version and HDCP 2.2.(Note) |
| Expansion Slots | 1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2. 1 x PCI Express x16 slot, running at x4 (PCIEX4) 3. 1 x PCI Express x1 slot (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.) (Note) Actual support may vary by CPU. |
| Internal I/O Connectors | 1. 1 x 24-pin ATX main power connector 2. 1 x 8-pin ATX 12V power connector 3. 1 x CPU fan header 4. 1 x system fan header 5. 1 x M.2 Socket 3 connector 6 . 4 x SATA 6Gb/s connectors 7. 1 x front panel header 8. 1 x front panel audio header 9. 1 x S/PDIF Out header 10. 1 x CPU cooler LED strip/RGB LED strip header 11. 1 x USB 3.1 Gen 1 header 12. 2 x USB 2.0/1.1 headers 13. 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only) 14. 1 x serial port header 15. 1 x Clear CMOS jumper |
| Back Panel Connectors | 1. 1 x PS/2 keyboard/mouse port 2. 1 x DVI-D port 3. 1 x HDMI port 4. 4 x USB 3.1 Gen 1 ports 5. 4 x USB 2.0/1.1 ports 6 1 x RJ-45 port 7. 3 x audio jacks |
| LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| H/W Monitoring | 1. Voltage detection 2. Temperature detection 3. Fan speed detection 4. Overheating warning 5. Fan fail warning 6. Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install |
| Power | 450 W power supply |
| Dimensions | L 477 x W 190 x H 446mm |
